To never accept compromise"
"永不接受妥協"...

Manufacturing of Duelund Coherent Audio, Denmark

丹麥Duelund Premiun Oil Impregnated Copper/tinned Cable
超優純油浸銅鍍錫機內/電源/喇叭線

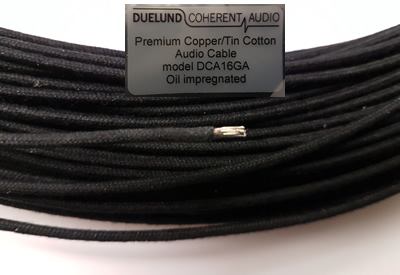

Duelund DCA16GA

DCA16GA
規格:
16 AWG線徑(1.29mm), 以油浸後烘乾的棉套介質, 油浸純銅鍍錫機內/電源/喇叭線

Duelund DCA16G超優油浸純銅鍍錫棉套機內/電源/喇叭線, 以油浸後烘乾的棉套介質, 具有極為鮮明的音色, 高超的暫態響應, 旋律有致, 繁複交錯中和諧, 活生生的音域錯綜, 不可思議的音像呈現, 自然活生水平的解析力, 濃郁聲音舞台和音場的描述, 一個如此令人屏息的音樂展現, 及有如此高水準- 高度另人動情的投入程度, 這就是造就作為最好喇叭線或機內線,我重從來沒有經驗過的. 都沒有過.

The Duelund DCA16GA premium tinned-copper cable, wrapped in its oil-soaked & baked cotton dielectric, with its extremely vivid tone color, superb dynamic response, melodic sophistication, harmonic complexity, live-like timbral complexity, spooky imaging presence, natural live-like level of resolution, generous portrayal of soundstage & soundspace, a presentation so breathtakingly musical, and with such high level of intensity of emotional engagement, that it makes for the finest speaker cables or interconnects that I have ever experienced, bar none.”

*Duelund DCA16GA 線榮獲positive-feedback.com頒為2016年度產品報導


New arrival
DCA12GA
規格:
12 AWG線徑(2.05mm), 以油浸後烘乾的棉套介質, 油浸純銅鍍錫機內/電源/喇叭線

New arrival
DCA20GA
規格:
20 AWG線徑(0.81mm), 以油浸後烘乾的棉套介質, 油浸純銅鍍錫機內/電源/喇叭線

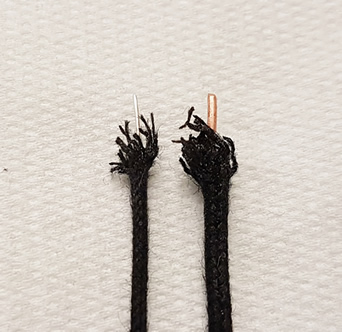

丹麥Duelund Premiun Oil Impregnated Silver/Cotton Audio Cable
超優油浸
純銀棉套機內/電源/喇叭線
AC0.4Silver wire
規格:
AC0.4 銀線0.4mm圓徑 25AWG, 1.2mm 棉套外徑
Premium Silver/Cotton Audio Cable
annealed silver wire in oil impregnated cotton jacket



丹麥Duelund Premiun Oil Impregnated Copper/Cotton Audio Cable
超優油浸
純銅棉套機內/電源/喇叭線
CC0.8 Copper wire
規格:
CC0.8 銅線0.8mm圓徑 20AWG, 1.8mm 棉套外徑Premium Copper/Cotton Audio Cable
annealed copper wire in oil impregnated cotton jacket





Duelund silver foil/silk oil wireDuelund silver oil wire 2.0mm and 1.0mm
丹麥Duelund Silver Foil/Silk oil Hook-up Wire
純銀箔/油浸絲質隔離套網機內線

最好的信號線, 99.999%實心純銀箔導體外批覆礦物油浸的絲質隔離套網
Ver. 2與0.5mm多了一層絲網, 讓油浸的絲質隔離套網加倍的優化"油浸"效果,
也因此增加了銀箔的抑制靜電特質, 使得音質更加的明顯展現出來;在於音像和音場的深度等等.

- DSFWd5
銀箔 (等值線徑0.5mm, 24AWG)

- DSFW1
銀箔 (等值線徑1.0mm, 約18AWG) , Version 2
annealed silver ribbon in oil impregnated silk,    寬2.5mm x 厚0.3mm 截面積約0.75mm2

- DSFW2
銀箔 (等值線徑1.3mm, 16AWG) , Version 2
annealed silver ribbon in oil impregnated silk,   寬4.7mm x 厚0.3mm 截面積約1.4mm2

- DSFW3
銀箔 (等值線徑1.5mm, 14.5AWG) , Version 2
annealed silver ribbon in oil impregnated silk,    寬6mm x 厚0.3mm 截面積約1.8mm2


丹麥Duelund Premium Air Core Inductor優質銅箔臘封空氣芯電感
純紅銅箔, WPIO/CU, Tol. +/- 5%,
Duelund Inductor 0.82mH

Premium Air Core Inductor銅箔臘封空氣芯電感
WPIO/CU, tol. +/- 5%, 12 AWG

Capacity (uF) , Dim. in mm.
0.68 mH, mm dia. x mm (H)
0.82 mH, 85 mm dia. x 24 mm (H)
3.0 mH, 130 mm dia. x 35 mm (H)

丹麥Duelund 紙管線繞電阻

- 一個感覺沒有電阻存在的電阻 -

到現在為止把電阻視為必要之惡, 是一種必須需要的東西, 但它在信號傳真的負面衝擊卻被藐視.

此隨著Duelund Coherent Audio電阻的引進已經改變.
當設計此零件的任務是以喇叭音圈和電阻視為一個整體而不是兩個分開個體.
此結果是一個電阻似乎是沒有它自有的出聲, 它容許喇叭單體展現它們非常好的聲音.

標準阻值從0,47 ohm - 50 ohm, 其他阻值可依要求訂製

VSF Carbon/silver wire wound resistor, tol. +/- 5%, 5W;
0R47, 1R

VSF Carbon/silver wire wound resistor, tol. +/- 5%, 10W;
0R47, 1R, 1R5, 2R2, 2R7, 3R3, 3R65, 3R9, 4R7, 5R6, 6R8, 7R5, 8R2, 10R, 15R, & 22R


CAST Carbon/silver wire wound resistor, tol. +/- 5%, 5W;
1R

CAST Carbon/silver wire wound resistor, tol. +/- 5%, 10W;
1R, 1R5, 2R2, 2R7, 3R3, 3R65, 3R9, 4R7, 5R6, 6R8, 7R5, 8R2, 10R, 15R, & 22R



Last updated on 5/29/13
