Select gold Contacting for solution of better sounding & Durable

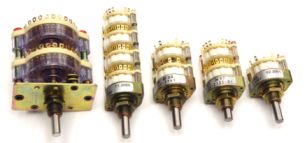

Rotary Switch type 04
Swiss Made


Characters:
- life expectancy > 25 000 switching cycles
- steel spindle-shaft and metal bush for rugged applications
- modular system allows easy adaptation of standard products
- Gold plated pins contact in 3um or gold flash plating
- Fixing hole: 10mm dia.
- 6 mm dia. of shaft


EM04-1261 ELMA Rotary Switch
2 pole, 6 position, gold flash
indexing angle 30°

Non-Shorting, with solder eyelet
Size: 25mm x 32mm x 52mm

EM04-1264 ELMA Rotary Switch
--ditto-- but version of gold plated contact pin

EM01-1261 ELMA Rotary Switch
2 pole, 6 position, gold flash/gold 3 um , 4mm dia.x 32 mm shaft, fixing screw 8mm dia.
indexing angle 30°

Non-Shorting, with solder eyelet
Size: 18mm dia. x 58mm
EM04-2261 ELMA Rotary Switch
4 pole, 6 position, gold flash
indexing angle 30°

Non-Shorting, with solder eyelet
Size: 25mm x 32mm x 68mm

EM04-2133-01

EM04-2133 ELMA Rotary Switch
2 pole, 24 position, gold plated in 3um
indexing angle 15°

Shorting, with solder eyelet
length of panel fixing screw+shaft is 18mm, Size: 25mm x 32mm x 61mm

EM04-2130 ELMA Rotary Switch
--ditto-- but gold flushed contact pin, length of fixing screw+shaft is 25mm
Size: 25mm x 32mm x 6
7mm

EM04-1133 ELMA Rotary Switch
-- ditto -- same as EM04-2133 but 1 pole, Mono


EM04-4130 ELMA Rotary Switch
4 pole, 24 position, gold flash pins
indexing angle 15°

Shorting, with solder eyelet
Size: 25mm x 32mm x 103mm

EM-226 ELMA Rotary Switch
2 pole, 26 position, gold flash pins
Shorting, with solder eyelet
Size: 40mm x 54mm x 88mm

* phase-out model, discontinued from production

Please contact for items not listed
