JENSEN AUDIO OIL CAPACITORS
Made in Denmark丹麥製

Jensen Audio Cap Jensen各種油質電容

 High quality paper capacitors, mineral-oil impregnated
丹麥JENSEN油質音響專用電容,世界級高品質油質電解電容中的佼佼者
- Alummium foil鋁箔
- Copper foil銅箔
- Silver foil 銀箔

特點:
. 遠優於一般油質電容具獨優的音色,Q度與韻味
. 音域寬而平坦,廣而圓順
. 不粗、不躁、透明度及音樂細節同時俱佳
. 電流導通量大,音樂訊息量飽
. 採用無毒性礦物油,獨家配方,零污染,使用安心
. 高壓真空油浸,經久歷鍊處理製成
. 丹麥製,悠久老牌油質電容權威廠商
. 鋁箔、銅箔、銀箔構造,絕配選擇
. 箱型高電壓(600v以上)濾波油質電容另洽詢



Copper foil oil capacitor with copper tube and silver lead wire, 630V
Copper tube & foil cap
銅箔銅管電容,圓形,臥式,630V,純銀導線
0.1 uf/630v
0.22 uf/630v
0.47 uf/630v

銅箔銅管電容,圓形,臥式,1000V,純銀導線
Copper-foil 1uf/450v
0.1 uf/1000V 22 x 56 mm
0.22 uf/1000V 25 x 57 mm
0.47 uf/1000V 42 x 58 mm

Copper foil oil capacitor with ceramic tube and silver lead wire, 630V
Copper foil in ceramic  tube
銅箔陶管電容,圓形,臥式,630V,純銀導線
0.1 uf/630v
0.22 uf/630v
0.47 uf/630v

Copper foil oil capacitor with paper tube and silver lead wire, 630V
copper foil in paper tube
銅箔紙管電容,圓形,臥式,630V,純銀導線
0.1 uf/630v
0.22 uf/630v
0.47 uf/630v
1 uf/630v

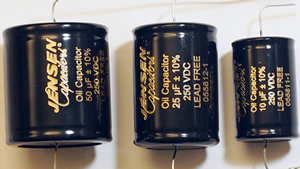

Metallized Polypropylene Capacitors, oil filled,
Axial performance with tinned copper leadout, 250VDC
new
For power filtering, round body, lead free, tol. -10/+10%
Jensen Oil electric cap
MPP PP金屬化油浸薄膜電容,圓形,臥式,250V,純銅鍍錫導線
10 uf/250V   30 x 52 mm
25 uf/250V   40 x 55 mm
33 uf/250V   45 x 55 mm
50 uf/250V   50 x 55 mm


Alummium foil oil capacitor with copper lead wire, 400V
Alum. foil 0.1uf/630v
鋁箔電容,圓形,臥式,400V,純銅鍍銀導線
0.01 uf   9 x 17 mm
0.1 uf   14 x 33 mm
0.15 uf  16 x 33 mm
0.22 uf  18 x 36 mm
0.33 uf  18 x 46 mm
0.47 uf  25 x 36 mm
0.68 uf  22 x 55 mm
1.0 uf   25 x 52 mm
2.2 uf   32 x 74 mm

Alummium foil oil capacitor with copper lead wire, 630V
鋁箔電容,圓形,臥式,630V,純銅鍍銀導線
0.01 uf, 0.015uf, 0.022uf, 0.033uf, 0.047uf, 0.068uf all at   9 x 21mm
0.1 uf   16 x 33 mm
0.22 uf  19 x 52 mm
0.33 uf
0.47 uf  35 x 47 mm
0.68uf
1.0 uf   30 x 71 mm
2.2 uf   35 x 77 mm

Box type copper-foil oil capacitor
copper-foil 1uf/630v (left), copper-foil 4uf/1000uf(right)
箱型油質電容, OPI series
1uf/200V,銅箔
1uf/600V,銅箔
4uf/1000V,銅箔, 4.5 x 4.5 x 12.5cm H
6 uf/1600v,鋁箔
6 uf/1000v,鋁箔
9 uf/1000v,鋁箔
10uf/1000v,鋁箔, 7 cm x 7 cm x 12cm(case H,overall height 14cm), 灰色
10uf/1600v,鋁箔
100uf/400V,鋁箔, 20(W)x 10(D)x20cm(H),OK TYPE
* 其他規格可接受訂製

Copper-foil oil capacitor with pure silver lead wire,round, axial
Copper-foil 1uf/450v
銅箔電容,圓形,臥式,630V,純銀導線
0.0051uf, 0.0056uf, 0.0068uf, 0.0075uf & 0.0082uf
0.001 uf

0.0015 uf 9 x 30 mm
0.01 uf  9 x 30 mm
0.015 uf
0.022 uf  15 x 35 mm
0.033 uf  15 x 35 mm
0.047 uf  16 x 37 mm
0.068 uf
0.1 uf   16 x 33 mm
0.1uf/450v
0.1 uf/1000V 25 x 35 mm
0.15 uf
0.22uf/450v
0.22 uf  25 x 35 mm
0.22 uf/1000V 30 x 35 mm
0.33 uf  30 x 35 mm
0.33uf/1000v
0.47uf/450v
0.47 uf 30 x 59 mm
0.47 uf/1000V 30 x 60 mm
0.68 uf   30 x 60 mm
0.68uf/1000uf
1.0 uf  30 x 54 mm
2.2 uf/450v 40 x 57 mm

Silver-foil oil capacitor with pure silver lead wire, round axial
Silver-foil capacitor
銀箔電容,圓形,臥式,630V,純銀導線

0.0015 uf  9 x 33 mm
0.01 uf    9 x 33 mm
0.047 uf  14 x 33 mm
0.1 uf    18 x 36 mm
0.22 uf   25 x 36 mm
0.33 uf   35 x 43 mm
0.4 uf/400v
0.47 uf   35 x 50 mm
1uf       50 x 55 mmnum foil, Speaker use

Alummium foil oil capacitor with copper lead wire, 100V
For SPEAKER USE, axial, round body

Speaker Capacitor alum-foil 7uf/100v
鋁箔電容,圓形,臥式,100V,純銅鍍銀導線,喇叭用
1  uf   25 x 55 mm
1.5 uf
2.2  uf   36 x 56 mm
3.3  uf   41 x 56 mm
4.7  uf   40 x 75 mm
5.1 uf
5.6  uf   51 x 56 mm
6.2  uf
7.0  uf   45 x 75 mm
8.0  uf   50 x 75 mm
10  uf    55 x 75 mm
12 uf     55 x 130 mm
15 uf     60 x 130 mm
20uf      71 x 134 mm

Speaker capacitor alum-foil 20uf/100v

Copper foil oil capacitor with copper lead wire, 100V
For SPEAKER USE, axial, round body
銅箔電容,圓形,臥式,100V,純銀導線 ,喇叭用
1 uf
1.5uf
2.2uf
3.3uf
4.7uf   45 x 60 mm
5.1uf
5.6uf
6.2 uf    68 x 64 mm
7 uf
8.0uf
10 uf
10uf/200v 55mm dia x 114mm
20 uf

Electrolytic Car Audio Buffer Capacitor
For CAR USE, screw terminal, round body, tol. -10/+30%
Jensen Car Buffer Capacitor
電解電容,圓形,立式端頭,18V,音響級,車用

1,000,000uf/18V 75mm x 225mm
1,500,000uf/18V 75mm x 228mm


Electrolytic Power Filtering Capacitor
Audio-Grade, round body, tol. -10/+30% can Negative with fasten nut, solder tag
電解電容,圓形,立式,焊端,500WVDC,音響級
高電壓雙顆型
47uf + 47uf/500V 35mm x 55mm(overall 76mm)
100uf + 100uf/500V 35mm x 55mm(overall 76mm)


4700uf/16V 16mm x 39mm new
1000uf/25V 16mm x 44mm new
22uf/450V 16mm x 30mm

47uf/450V 22mm x 35mm
100uf/450V 25mm x 49mm
20uf/500V 18mm x 39mm
40uf/500V 25mm x 50mm

60uf/500V 25mm x 49mm
80uf/500V 25mm x 49mm
200uf/500V 35mm x 50mm
100uf/500V 30mm x 49mm
200uf
/500V 35mm x 49mm


22000uf/16V 30mm x 50mm
new

10000uf/16V 21mm x 36mm new
6800uf/16V 18mm x 30mm new
220uf/63V 10mm x 31mm new

4 Pole Axial Electrolytic Power Filtering Capacitor new
Rated high current, 4 pole type with filtering effect and minimal transfer impedance making them superior to normal 2 pole electrolytic. round body, screw terminal, tol. -10/+50%
電解電容,圓形,立式,鎖螺式端頭,4 極純平衡式對應
高電流級, 4端點濾波效果與低轉載阻抗使比一般2極電解電容更佳


Dimension: Dia. x Length
63v/4700uf 35 x 80mm
63v/8200uf 35 x 96m

4 Pole Radial Electrolytic Power Filtering Capacitor new
4 pole type with filtering effect and minimal transfer impedance making them superior to normal 2 pole electrolytic. round body, solder tag, tol. -20/+20%
電解電容,圓形,立式,焊式端頭,4極純平衡式對應
4端點濾波效果與低轉載阻抗使比一般2極電解電容更佳

63v/10,000uf

Dimension: Dia. x Length
16V/47000uf 35x50 mm
25v/10000uf 35x30 mm
25v/15000uf 35x30 mm
25v/22000uf 35x40 mm
25v/33000uf 35x40 mm
25v/47000uf 35x70 mm
40v/10000uf 35x40 mm
40v/22000uf 35x50 mm
40v/33000uf 35x70 mm
63v/4700uf 35x30 mm
63v/6800uf 35x40 mm
63v/10000uf 35x50 mm
63v/15000uf 35x70 mm
80v/10000uf 35x70 mm









Dimension: Dia. x Length
100v/2200uf 35x40 mm
100v/3300uf 35x40 mm
100v/4700uf 35x50 mm
100v/6800uf 35x70 mm
200v/1000uf 35x40 mm
200v/1500uf 35x50 mm
200v/2200uf 35x70 mm
385v/220uf 35x40 mm
385v/330uf 35x40 mm
385v/470uf 35x50 mm
385v/680uf 35x70 mm
450v/150uf 35x50 mm
450v/220uf 35x50 mm
450v/330uf 35x70 mm
450v/470uf 35x70 mm
500v/100uf 35x50 mm new6

Remark: All of shipping color of sleeve on Jensen's alum. foil/silver foil/copper capacitors are vary and not fixed to the color as shown on above web page. However, all the body color is alum. nature color.
-所有的鋁箔/銀箔/銅箔電容的外撘套筒顏色是沒有特定的, 你可能收到與以上網頁圖像不同顏色時皆屬正常

-參考資料:現代音響雜誌116期, 3/1998. 相關的產品評論和聲音特性

其他未列明產品規格,請電詢

Last updated on 6/14/14
