AUDIOPHILE PERFORMANCE TUBE OUTPUT POWER TRANSFORMERS
Made in Taiwan



- Japanese engineering team works
- Design for serious music listener and audiophile
- Mfg. by ISO9001 plant
- Models are currently applied onto ARRIBA brand tube amp.
- Custom design on pod/cover is accepted


SINGLE-ENDED POTTED OUTPUT TRANSFORMER
With secondary impedance at 4, 8 ohm
* With optional feedback 8 ohm lead out and screen lead

Model No.
* S: 43% screen tap
Max. DC current Primary
Impedance(s)
Audio
Watt
Frequency
Response
Application
tubes type
Dimension
Reference
Net Weight
(kg)
ADS-1001

65mA(2.5K) / 55mA(3.5K)

12K 38W 10Hz~70KHz <-2dB
845 135mm (W) x 115mm (D)
x 144mm (H)
8.3

PUSH-PULL POTTED OUTPUT TRANSFORMER
With secondary impedance at 4, 8, 16 ohm
* With optional feedback 16 ohm lead out and screen lead

Model No.
* S: 43% screen tap
Max. DC current Primary
Impedance(s)

Audio
Watt
FrequencyResponse Application
tubes type
DimensionsReference Net Weight
(kg)
APP-2002 90mA 6.3k (SG) 20W 10Hz~70KHz <-2dB   117mm (W) x 137mm(D)
x 104mm(H)
4.7
APP-2003 90mA 5k (SG) 20W 10Hz~70KHz <-2dB   117mm (W) x 137mm(D)
x 104mm(H)
4.7
APP-2006
100mA 5k (SG) 35W 10Hz~70KHz <-2dB KT88 117mm (W) x 137mm(D)
x 104mm(H)
5.7
APP-2007 160mA 5k (SG) 50W 10Hz~70KHz <-3dB KT100 117mm (W) x 137mm(D)
x 104mm(H)
4.7

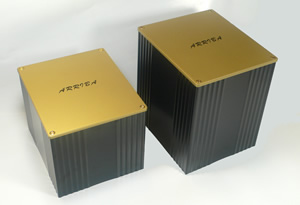

Color finish & options;
* Alum. alloy anodized plating on top plate, body in glossy baked paint
* Black, silver(natural) and champagne finish

* Options : black body/silver top cover, black body/champagne top cover

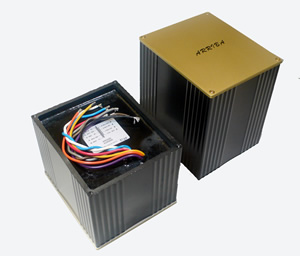

Dimensions;
* Width 117mm x Depth 137mm, (inner 103mm x 123mm ), Height in varies
* Fixing screw:  dia. of 3 mm, wall thickness of overall 12mm


Please contact for items not listed above.
