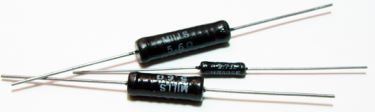

Mills Audio Resistors

Made in USA

These resistors were originally designed for the audiophile to upgrade the crossover networks in custom built loudspeakers.
They have since found their way into many kinds of equipment used to audiophonically reproduce music and sounds very close to what is heard in a live performance.


Characters:
- Resistors designed for the audio
- Non-magnetic, non-inductive, all welded construction greatly enhances frequency response.
- Combined with Aryton-Perry winding inductive reactance and signal loss are almost totally eliminated.
- Meets or exceeds the specifications in MIL-PRF-26 for wirewound resistors.
- Meets the applicable specifications of MIL-STD-202, method 208
- Core: Alumina ceramic. This material provides significantly broader heat dissipation compared to that of normal steatite ceramic core.
- Element: Nickel-chromium or nickel-copper alloys used.
- Leads: Tinned Copper with Silver-plated endcaps.
- Tol. 1%, 20 PPm
- Dielectric strength 5W at 500VAC, 10W & 12W at 1000VAC


MRA05, body: 4.24 dia. x 16.5mm,
Overall: 90.5mm

5 W:
0.1, 0.22, 0.33, 0.47, 1, 1.5, 2.2, 2.7, 3.3, 3.9, 4.3, 4.7, 5.1, 5.6, 6.8, 8.0, 8.2, 10, 12, 15, 18, 22, 33, 220, 270, 750, 1K, 1K2, 1K5. 2K2, 3K, 3K9 & 4K7

MRA10 , body: 7.93 dia. x 24.8mm,
Overall: 98.43mm


10W:
0.1, 0.22, 0.33, 0.47, 0.56, 0.68, 1, 1.2, 1.5, 1.8, 2, 2.2, 2.4, 2.7, 3, 3.3, 3.6, 3.9, 4.3, 4.7, 5.1, 5.6, 6.2, 6.8, 7.5, 8.2, 9.1, 10, 12, 15, 18, 20, 22, 33, 47, 68, 100, 1K, 2K2, 3K, 3K3, 4K7, 5K6, 6K8, 8K2, 10K


MRA12 , body: 7.93 dia. x 32.5mm,
Overall: 106.38mm


12W:
0.68, 1, 1.2, 1.8, 2, 2.2, 3, 3.3, 5.6, 10, 18, 47, 68, 100, 2k, 2k7, 4k7, 12k, 15k
Contact for else series or impedance is not listed
