Plate Voltage: 300V
Grid Bias: -61V
Plate Current: 60mA
μ: 3.9
rP: 700 ohm
Gm: 5.6mA/v
Cg-p:11.3pf
Cg-f: 7.9pf
Cp-f: 5.4pf
Plate Dissipation: 40W
Filament Volts: 5.0V
Filament Current: 1.2A
Filament Volts: 5.0V
Filament Current: 2A
AC Resistance:
Fine Works on O'MUSIC audio tube
Designed for musical and OEM to China
|

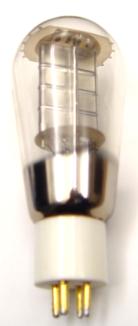

O'Music 300B Plate Voltage: 300V Grid Bias: -61V Plate Current: 60mA μ: 3.9 rP: 700 ohm Gm: 5.6mA/v Cg-p:11.3pf Cg-f: 7.9pf Cp-f: 5.4pf Plate Dissipation: 40W Filament Volts: 5.0V Filament Current: 1.2A |
|

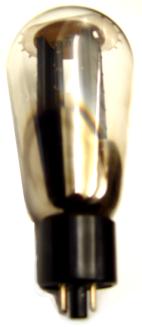

O'Music 274B Rectifier Filament Volts: 5.0V Filament Current: 2A AC Resistance: |
* Advise if you need other O'Musice products, ie PX25, 45.
* Warranty one year
Last updated on 2/19/04
