Cables
- Made In Japan -
'State of the Art ' for Audio

Oyaide定義了與眾不同...介於高品質材質和最新技術的合諧
Defined the difference...Harmony between high quality material and latest technology

Oyaide導線製作設計有堅實的理念, 其中沒有妥協.
Oyaide 總是追求一個較高的性能優越及在不尋常新概念所製成的產品,在補足傳統之餘卻超越它, 產品拮取顧客的需求和趨勢,人們將會為它印象深刻.

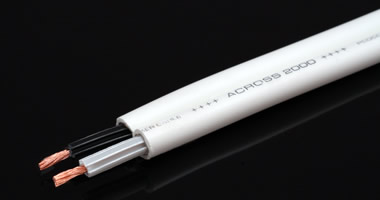

我們以新的概念和堅實的理念做「ACROSS 2000」.
ACROSS 2000的結構概念是獨立平行編排和外部豐沛的磁白色. 任何它都有創新的地方.
ACROSS 2000的導體是PCOCC-A,它與PCOCC有相同的概念. 然而, 它是更新後顧客的考慮需求與趨勢.

PCOCC-A是多蕊的結構,分為7的理想分配密度的平衡彈性來做. 進而,每一個導體絞線在相反的方向, 它抑制混合雜訊於最小.

特別的注意,它是固定在一個開發的C.I.S.架構的絕緣體上, C.I.S.架構使得免於微弱的振動.
此結構令振動特性和電氣特性改善.

外部採取Furukawa嶄新為音響系統開發的免於鹵素(Halogen-free)護套. 它讓低音調水平復活, 一個好的振動特性和電氣特性沒有損失.

ACROSS 2,000 採納Furukawa的新結構, 高品質和新材質的導體

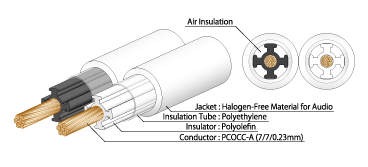

Specification ACROSS 2000
Conductor導體 PCOCC-A
AWG線徑 2.0Sq(7/7/0.023)
Cable Structure線結構 C.I.S(Cross insulated stabilizer)
Insulation絕緣 Polymer Polyolefin
Insulation Tube 絕緣套 Polyethylene
Outer jacket 外皮 Halogen Free Polyethylene
Cable O.D.線外徑 9.0×18.0mm
Conductor resistance 導體阻抗

8.4 Ω/km(at20℃)

Electric capacitance電氣電容 24.7 PF/m
Characteristic impedance特性阻抗 218Ω

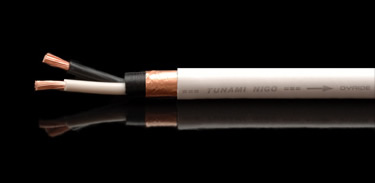

TUNAMI NIGO

TUNAMI是針對"喇叭和電源"的多元設計
This TUNAMI is a multi design for "Speaker and Power".

The TUNAMI recorded the best sales in 2005 because of a novel idea and a wonderful sound .
And TUNAMI NIGO for speakers releases it now. It removed the ground lead of TUNAMI,and the cable is constructed using PCOCC-A wire developed by Furukawa Electric using advanced heat control and extrusion technology. The multi-design that TUNAMI NIGO can use a speaker cord, power cord together.The outer sheath color is ceramic white and matches to the interior design.


The cable utilizes a 5.5 sq has a big dumping factor, and transmits the signal without the loss to 16m(reference value).
Of course it is rated up to 30 amps and can take up to 600 volts A/C. This makes it a leaderin its class delivering a powerful sound. In addition it has a unique 3 layer shielding system not only to shut out external noise but also to suppress internal noise resulting in a very low noise floor.

The sound quality of TUNAMI NIGO is a high range and a clear sound that create a sense of tension.
The sound character is elegant yet aggressive, agile and well-muscled as well as TUNAMI.

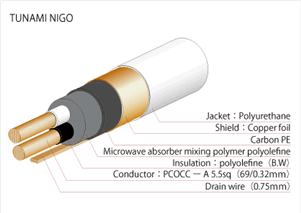

Specification TUNAMI NIGO

Conductor導體 PCOCC-A
AWG(stranding)線徑 5.5Sq(69/0.32mm)
Cable Structure線結構 2P
Insulation(inner)內絕緣 Polymer polyolefine
Insulation(outer)外絕緣 Microwave absorber mixing polymer polyolefine
Outer外面 Polyurethane
Shield摒蔽 1layer:electro magnetic field formation 2 layer:carbon PE 3layer:copper foil
cable O.D.線外徑 14.0mm
Volt/Amp 600V / 30A <PS>E

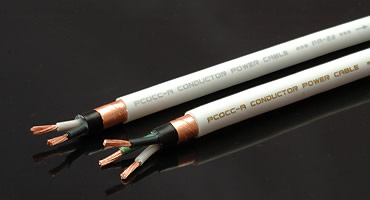

PA-23

高品質兼容實用性
It's high quality compatible with the usability.

The Oyaide elec.has firm design thought when we make a cable. We don't compromise, the pursuit of a good performance and the innovative ideas. also novel concepts.
We always impressed people in consideration of needs and a trend.


The PA-23/PA-22 was made with a novel concept and firm design thought. The basic architecture follows the equation of a typical cabtyre cable. It unites the performance to safety by a high dimension.
The exterior's color is calcium white of the elegant finish. It has innovatives idea and unprecedented novel concepts. It adopted four kinds of a different compound. As a result, the traction control and flexibility were achieved.
The shield is two layer noise protection system by copper foil and the semiconductor carbon compound.
The structure is PCOCC-A multi stranding structure of seven ideal distributions. Our technology has advanced level and creativity.

PA-23/ PA-22 gives pleasure to make a tone with your sense. It is a prelude to refined luxurious sound.

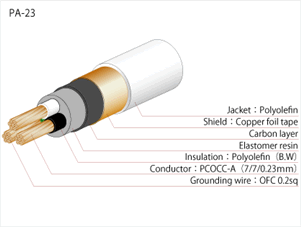

Specification PA-23

Conductor導體 PCOCC-A/OFC(Earth wire)
AWG(stranding)線徑 2.0Sq(7/7/0.023)
Cable Structure線結構 3P
Insulation絕緣 Polymer polyolefine
Filling layer 填充層 Elastomer resin
Outer外面 Polyurethane
Shield摒蔽 1layer:carbon PE 2layer:copper foil
cable O.D.線外徑 11.1mm
Volt/Amp 300V /15A <PS>E

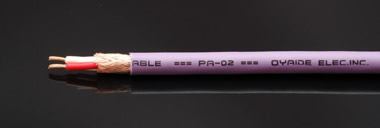

PA-02


體驗一個材質的特別潛在價值, 因於追求簡單
You feel a special possibility of material, because it pursued simplicity.

PA-02 is simply designed, because it make good use of the potential of PCOCC-A.
The structure of PA-02 is a traditional balanced type shielded wire for audio and professional.


The cable is constructed using PCOCC-A wire developed by Furukawa Electric using advanced heat control and extrusion technology. Moreover, the outer was using new material(Halogen-free-sheath for audio) of Furukawa Electric.
The bass sound without the loss is play back by the vibration control and improving an electric characteristic. PA-02 was featuring to high-quality conductor and new materials of Furukawa Electric Co.Ltd.
You will feel genuine "MADE IN JAPAN".

And furthermore, The PA-02TR attach an exclusive original plug. It's low price with amazing sound. A original plug can be smoothly connected with AV amplifier that it is the narrow between terminals etc..
The PA-02TX attach an XLR plug(Switchcraft)of high quality.

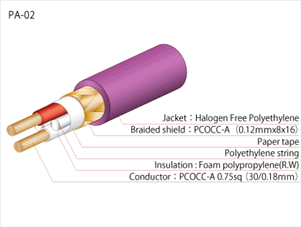

Specification PA - 02

Conductor導體

PCOCC-A

AWG(stranding)線徑 0.75Sq(30/0.18mm)
Cable Structure線結構

balanced type shielded wire

Insulation(inner)內絕緣 Foam Polypropylene
Outer外面 Halogen Free Polyethylene
Shield摒蔽 PCOCC-A (8/0.12mm)×16
cable O.D.線外徑

8.0mm

Conductor resistance導體阻抗 26.4 Ω/km
Capacitance電容量 32 PF/m
Impedance阻抗 120Ω

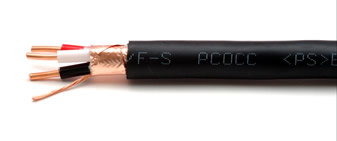

EE/F-S 2.6

EE/F-S 2.6是高密度的電力及高速度的反應
The EE/F-S 2.6 is high-density power and high speed response.


The power supply is a key of audio.
The Oyaide Elec got a conductor of PCOCC-A by cooperation of Furukawa Electric. As a result, we can release the item that sound quality improves. We made the interior wiring of high-quality audio from the need of the users with the wonderful PCOCC-A. It's a "EE/F-S 2.6".
"EE/F-S 2.6" is all manufactured from Furukawa Electric with the quality control. It satisfies a tough condition of PSE and Japanese Industrial Standards, and it has safety and high quality.

“ EE/F-S 2.6" is exclusive of the interior wiring for audio.



We made high-quality finished from under the condition of Japanese Industrial Standards.
2.6mm power unit PCOCC-A of "compliant AC600V30A " has overwhelming potential.
"EE/F-S 2.6"used a Halogen-free sheath of Furukawa for world's first audio systems. It has an unique electric characteristic and vibration characteristic.
In addition,the copper foil shield for noise protecting and drain wire for copper foil."EE/F-S 2.6" is innovation of the interior wiring for audio. As for splendid "EE/F-S 2.6", there is a reason in the architecture.
A general interior wiring is parallel type F cable. But“EE/F-S 2.6" adopted the cabtyre structure.
As a result of twisted inside conductor, it has superiority for noises more than 30db in comparison with parallel type."EE/F-S 2.6" succeeded in balancing safety with a performance in a high level.
Furthermore, it is exact sound because it uses PCOCC-A.

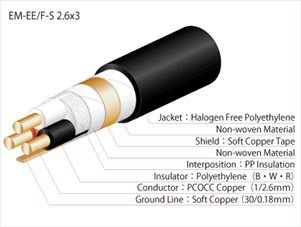

Specification EE/F-S 2.6

Conductor導體 PCOCC-A
AWG線徑 2.6mm single wire
Cable Structure線結構 3P Cabtyre
Insulation絕緣 Polyethylene
Filled layer 填充層 PP intervention、Nonwoven material
Jacket外皮 Halogen-free sheath for audio
Shield摒蔽 Copper foil tape (in drain wire)
Cable O.D.線外徑 14.5mm
Volt/Amp 600V /30A <PS>E,JIS

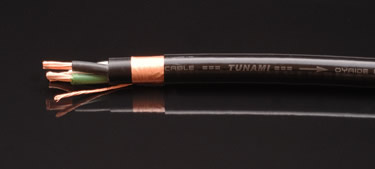

TUNAMI


在電源線設計-"TUNAMI" 宣告一個新的標準
ANNOUNCING A NEW STANDARD IN POWER CABLE DESIGN THE "TUNAMI"
- 2006 AUDIO EXCELLENCE AWARDS(JAPAN)
- Visual Grand Prix 2006(JAPAN)

Oyaide Electric with the experience gained from a long history of cable design, has developed a reference standard power cable called the "Tunami".
The cable is constructed using PCOCC-A wire developed by Furukawa Electric using advanced heat control and extrusion technology.

The cable utilizes a 5.5 sq. mm conductor core that is rated up to 30 amps and can take up to 600 volts A/C.
This makes it a leaderin its class deliveringa powerful sound. In addition it has a unique 3 layer shielding system not only to shut out external noise but also to suppress internal noise resulting in a very low noise floor.

The combination of advanced and creative technologies delivers every intention of musicians with the delicateatmosphere around them.

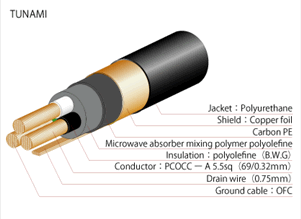

Specification TUNAMI

Conductor導體 PCOCC-A / OFC(Ground cable)
AWG(stranding)線徑 5.5Sq(69/0.32mm)
Cable Structure線結構 3P
Insulation(inner)內絕緣 Polymer polyolefine
Insulation(outer)外絕緣 Microwave absorber mixing polymer polyolefine
Outer外面 Polyurethane
Shield摒蔽 1layer:electro magnetic field formation 2 layer:carbon PE 3layer:copper foil
cable O.D.線外徑 15.0mm
Volt/Amp 600V / 30A <PS>E

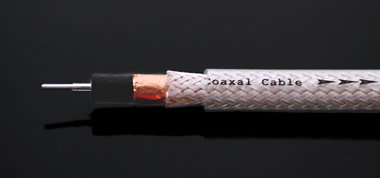

FTVS-510



一個從使用高品質銀記錄以來, 以技術和理論所做的同軸線
It is the coaxial cable made in the technology and theory of a record level at origin using high quality silver.

-2006 AUDIO EXCELLENCE AWARDS(JAPAN)

"FTVS-510" uses silver of the best quality for a central conductor to decrease transmission loss.
The shield of three layers defends the signal from the noise, and sends a pure signal.


The design meaning offers the highest quality, even when you use by the sound and a digital (75ohms) signal cable not to mention the performance as an antenna cable (BS, CS, BS digital, Hi-Vision).
And transmission of 100m or more is secured to HD signal.

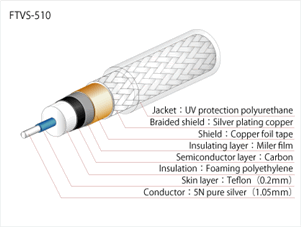

Specifications FTVS-510

Conductor導體 1.05mm 5N(99.9995%)pure silver (Skin pass processing)
Insulation絕緣 Teflon skin layer + foaming polyethylene
Shield摒蔽 Copper foil + silver plating copper (more than assortment rate 95%)
Outer外面 UV protection polyurethane
Impedance阻抗 75 Ω
Capacitance電容量 56.5 nF/Km
Wavelength shortening rate 74.5 %
Attenuation衰減 23.1 dB/Km
Conductor resistance導體阻抗 21 Ω/Km
O.D線徑 8.0mm


SLi LOAD

我們的設計哲學理論是簡單的消除從線本身的渲染
Our design philosophy is to simply eliminate coloration from cable itself.

We never load it with character to create seemingly impressive sound, therefore avoid utilizing any special material , particular configuration nor special treatment to add some impressive feature.
We passionately care for fundamental quality and spare no effort to realize it, but we believe it should always sound natural as if the cable does not exist.

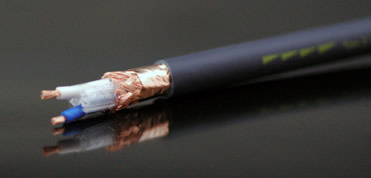

SL110XX; is Balanced 2-core Interconnect Cable, terminated with XLR plugs, usable for both Analogue and Digital (AES/EBU) with 110 ohm impedance.

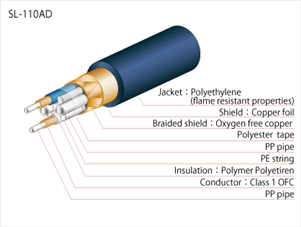

Specification Straight Line 110AD

Conductor導體 High purity Oxygen-Free-Copper
Cable Structure線結構 Paired
Insulation(inner)內絕緣 Polymer Polyetiren
Insulation(outer)外絕緣 Polymer Polyolefin
AWG(stranding)線徑 AWG20 0.18X19
cable O.D.線外徑 9.0mm
