Specification are as below;

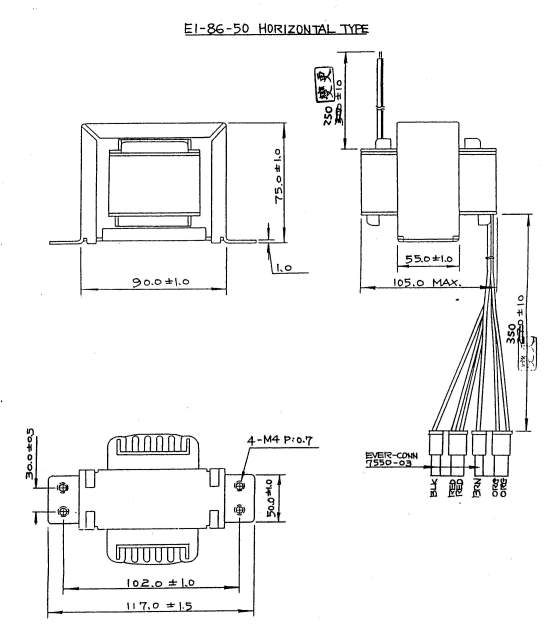

Part No. 29-2249A-5
In stock: Sold out
Safety: UL
Core size: EI-86-50
Core Material: H20A
* Passed for dielectric strength test without any breakdown
* Mfg of 1992
Input VAC: 230VAC 50Hz, AWG#22
Exciting current less then 180mA
Sec. no load voltage:
31.8 V x 2 +/-5% AC  at lead out code 3-4-5, 3-5 with TEW AWG#22(with E.C.I./7550-03 sockt)
33.5 V x 2 +/-5% AC  at lead out code 6-7-8, 6-8 with TEW AWG#22(with E.C.I./7550-03 sockt)
-----------------------
Sec. Load Voltage & Current
35. V x 2 +/-5% AC  2500mA DC 3-4-5
40 V x 2 +/-5% AC  100 mA DC 6-7-8

Lead wire: UL/CSA type vinyle electric wire
Weight: 2.56kgs
Dimension

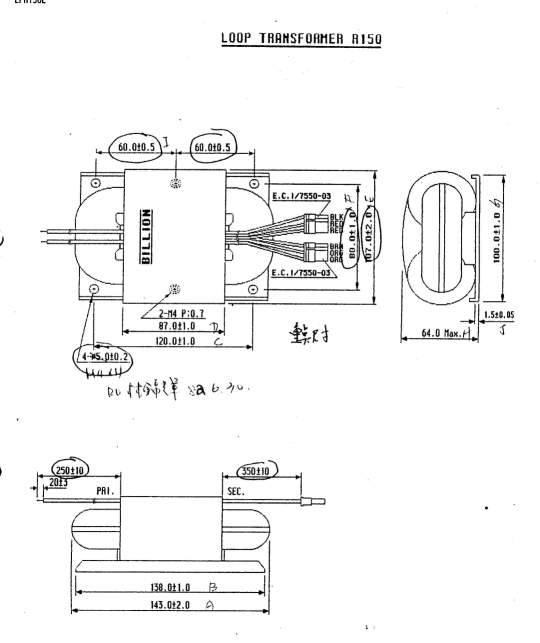

Part No. 29-2345-5
In stock: 15pcs only, each at NT$600(US$21)
Safety: VDE
Core size: R-150
Core Material: Z8
* Passed for dielectric strength test without any breakdown
* Mfg of 1993
Input VAC: 230VAC 50Hz, AWG#22
Exciting current less then 25mA
Sec. no load voltage:
39.5 V x 2 +/-5% AC  at lead out code 3-4-5, 3-5 with TEW AWG#22(with E.C.I./7550-03 sockt)
39.7 V x 2 +/-5% AC  at lead out code 6-7-8, 6-8 with TEW AWG#22(with E.C.I./7550-03 sockt)
-----------------------
Sec. Load Voltage & Current
42 V x 2 +/-5% AC  3200mA DC 3-4-5
46.2 V x 2 +/-5% AC  100 mA DC 6-7-8

Lead wire: UL/CSA type vinyle electric wire
Weight: 2.8kgs
Dimension
