CARDAS AUDIO CONNECTORS
RCA Plugs, Sockets, Spades, Binding Post, Solder, Clips and Terminating kits

美國製造

- 為最好的聲 音設計, 高品味, 超純度無氧銅, 高導電性鍍銠, 表面特殊電鍍處理 -

Cardas Premium Power Connector (高端電源插頭/插座)

CDS3455R-CNT Cardas Premium Power Connectorm 高端電源插頭
公插, 紅銅插片, 鍍銀後再鍍銠以改進電子接觸及電流傳導, 緊湊體型和牢固助於防止粗大電源線由牆面拉脫
, 最大10~16mm線徑用


CDS3455R-CNT Cardas Premium Power Connectorm 高端電源插頭
母插, 紅銅夾片, 鍍銀後再鍍銠以改進電子接觸及電流傳導, 緊湊體型和牢固助於防止粗大電源線由牆面拉脫
, 最大10~16mm線徑用


RCA Socket and Plugs (鍍銠信號線插頭/插座)
SRCA Ultimate RCA Plug終極插頭
non-magnetic, eutectic Brass, Rhodium over Silver Plated, gold Plated, Spring loaded tip, 9.5mm cable opening, optional 11mm, and 13mm cable opening adapters

鍍金, 鍍銀上鍍銠,
9.5mm 線徑用,使用轉接頭可達11mm和13mm
SRCA Ultimate S Video Plug 終極S影像插頭
non-magnetic, eutectic Brass, Rhodium over Silver Plated, gold Plated, Spring loaded tip, 9.5mm cable opening, optional 11mm, and 13mm cable opening adapters

鍍金, 鍍銀上鍍銠,

9.5mm 線徑用,使用轉接頭可達11mm和13mm
Cable opening adaptor xrca11   xrca13
SRCA cable opening adapter線徑轉接頭
non-magnetic, eutectic Brass, Gold Plated 鍍金

CXRCA11 11mm(圖左)

CXRCA13 13mm(圖右)
SRCA SR cable opening adapter線徑轉接頭
CXRCA20-B, non-magnetic, eutectic Brass, Gold Plated 鍍金, 20mm
GRMO RCA male公插頭
non-magnetic, eutectic Brass, Rhodium over Silver Plated, gold Plated, Brass cover,
鍍金, 鍍銀上鍍銠,
AGMO RCA male公插頭
non-magnetic, eutectic Brass, gold Plated, 9mm cable opening

鍍金


GNCM Economy RCA male
GRCM6 Small RCA male公插頭(小)
non-magnetic, eutectic Brass, Rhodium over Silver Plated,6 mm cable opening

gold Plated, Brass cover

鍍金, 鍍銀上鍍銠,6mm線徑用

GRCM7 Small RCA male公插頭
non-magnetic, eutectic Brass, Rhodium over Silver Plated,8mm cable opening

gold Plated, Brass cover

鍍金, 鍍銀上鍍銠,8mm線徑用

GNCM Economy RCA male 經濟型公插頭
Brass, Nickel plate,8mm cable opening
, Brass cover, gold plated
鍍金, 鍍銀上鍍銠,8mm線徑用

GRCM7 Small RCA male公插頭
non-magnetic, eutectic Brass, Rhodium over Silver Plated,8mm cable opening

gold Plated, Brass cover

鍍金, 鍍銀上鍍銠,8mm線徑用

Click for another look
SLVR RCA male鍍銀公插頭
non-magnetic, eutectic Brass,9mm cable opening, silver Plated

鍍銀, 9mm線徑用

GSMO RCA male鍍銀/鍍金公插頭
non-magnetic, eutectic Brass,9mm cable opening, silver Plated/gold plated cover
鍍銀/ 鍍金殼,9mm線徑用
GRNO 90°RCA male L形插頭
non-magnetic, eutectic Brass, Rhodium over Silver Plated,9mm cable opening, Brass cover, gold plated

鍍金, 鍍銀上鍍銠,9mm線徑用

GRQ-SM Mono Phono Plug麥克風插頭
Straight, mono, 1/4" phono plug, non magnetic, eutectic brass, Rhodium plate, Brass cover, gold plate
鍍金殼,鍍銀上鍍銠,8mm線徑用,單音

GRQ-SS Stereo Phono Plug麥克風插頭
--- 同上 ---但
立體

GRQ-RM R 90°Mono phono PlugL麥克風插頭
Right angle, mono, 1/4" phono plug, non magnetic, eutectic brass, Rhodium plate, Brass cover, gold plate
鍍金殼,鍍銀上鍍銠,9mm線徑用,單聲道

Sennheiser Headphone connector (德國Sennheiser耳機接頭)
HPSC Headphone connector 耳機接頭
for Sennheiser replacement cables, 32mm length
Rhodium Plated, 鍍銠

"F" Video Plug (視頻信號端子接頭)
FGRF "F"Video connector接頭
non-magnetic, eutectic Brass, Rhodium over Silver Plated, Brass cover, gold plated

鍍金, 鍍銀上鍍銠


Chassis Output Binding Post (輸出端子,後級機箱用)
CCBPs short,Glass filled nylon insulator, billet copper,無氧銅

CCGRs short, billet Brass, Rhodium over Silver Plated,non-magnetic 鍍金,鍍銀上鍍銠

CCGRsg short, billet Brass, Rhodium over Silver Plated,non-magnetic, single鍍金,鍍銀上鍍,單支組

ACBPs short, non-magnetic, Rhodium over Silver Plated, 鍍金,鍍銀上鍍銠

CPBP Cardas patented Binding post
.25" dia. contact post are available in two lengths; 0.25"(S) and 1.5" long(L)

materials on post;

1) non-magnetic, eutectic billet Brass with Rhodium over Silver Plated鍍銀上鍍銠

2) High purity,billet copper,無氧銅

3) non-magnetic, eutectic billet Brass with nickel Plated鍍鎳

4) Solid silver純銀


Speaker Case input Binding Post (輸入端子,喇叭用)
CCBPL Long,Glass filled nylon insulator, billet copper,無氧銅
CCGRL long, billet Brass, Rhodium over Silver Plated,non-magnetic 鍍金,鍍銀上鍍銠
ACBPL long, non-magnetic, Rhodium over Silver Plated, 鍍金,鍍銀上鍍銠


Bananas(鍍銠喇叭香蕉 插)
CABD Double Bananana Plug香蕉雙插
non-magnetic, eutectic Brass, Rhodium over Silver Plated, gold Plated,
鍍金, 鍍銀上鍍銠
CABE Economy Bananana Plug香蕉單插
non-magnetic, eutectic Brass, Nickel plate
,鍍金, 鍍銀上鍍銠
MAGY Magnaplaner Connecting Pin 連接單插
non-magnetic, eutectic Brass, Rhodium over Silver Plated

鍍金, 鍍銀上鍍銠


Speaker Input By-Pass Connector (喇叭橋接片/接頭);
CLJP Jumper Plate
Adjustable bi-wire, copperㄇ形,無氧銅,可調整bi-wire接片
CLJP-R Jumper Plate
Adjustable bi-wire, copperㄇ形,鍍銠,可調整bi-wire接片
CLSCP XLR Short-Circuit Pin
Copperㄇ形,鍍金, XLR短路插芯
CNDP Speaker Pin 鍍金喇叭插針
billet Brass, Gold Plated
PCCE Economy cartridge Clips銅鍍金插夾
Brass, gold Plated,
PCC Cartridge Clips, non-magnetic, billet Brass, gold Plated,set of 4, 紅銅彈簧
PCCg 銅鍍金插夾
PCCag 銅鍍銀插夾
PCCcu 紅銅插夾
PCCr 銅鍍銠插夾


Grounding Post (地線端子,前後級機箱用);
GRND Grounding Post接地端頭
non-magnetic, eutectic Brass, Rhodium over Silver Plated, brass nut, gold plated, 鍍金,鍍銀上鍍銠


Female RCA(插座,前後級機箱用);

GRFAs Short RCA Female,短插座 non-magnetic, eutectic Brass, Rhodium over Silver plate.gold plated 鍍金,鍍銀上鍍銠

GRFAL Long RCA Female,長插座 non-magnetic, eutectic Brass, Rhodium over Silver plate.gold plated 鍍金,鍍銀上鍍銠

GRFA-PRT PCB mount RCA Female,印刷線路板用插座
right angle, non-magnetic, eutectic Brass, Rhodium over Silver plate.gold plated
, 鍍金, 鍍銀上鍍銠
GRFA-PS PCB mount RCA Female,印刷線路板用插座
Straight, non-magnetic, eutectic Brass, Rhodium over Silver plate.gold plated
, 鍍金, 鍍銀上鍍銠
CTFA RCA Female,標準插座
non-magnetic, eutectic Brass,gold plated, brass nut gold plated 鍍金


Female BNC(插座,前後級機箱用);
GRBNCR PCB mount BNC,印刷線路板用插座
Right angle, non-magnetic, eutectic Brass, Rhodium over Silver plate.

鍍銀上 鍍銠
GRBNCs PCB mount BNC,印刷線路板用插座
Straight, non-magnetic, eutectic Brass, Rhodium over Silver plate.

鍍銀上 鍍銠


Spades(Y插,喇叭/信 號用);


GRSC 純銅Y插
GRSR Stamped spade,Y插
2 pcs set, copper,Rhodium over Silver plate.Copper sleeve,gold plated

.245" cable terminating hole

鍍銀上 鍍銠, 紅銅套筒鍍金,.245"線孔徑

GRS9R Stamped spade,Y插
 --ditto-- but 9 mm cable terminating hole

同上不 過,9mm 線孔徑

GRSC Copper Stamped spade,純銅Y插
2 pcs set, copper Y spade
Copper sleeve,gold plated

.245" cable terminating hole

紅銅Y 插,套筒鍍金,.245"線孔徑

CCMSR1 Milled Spade,研磨Y插
billet copper, Rhodium over Silver plate.with .12" cable terminating hole.

紅銅, 鍍銀上鍍銠, .12"線孔
Extra termination hole
CCMSRXL XL Milled Spade,研磨Y插 new
billet copper, Rhodium over Silver plate.with .275" cable terminating hole with an extra .25" depth.

紅銅, 鍍銀上鍍銠, .275"線孔,.25"孔深
CCMSOLR Milled Billet O-Lug,研磨O-Lug接端頭
billet copper, Rhodium over Silver plate, 7mm dia. hole, 5mm dia. termination hole
, 14 x 34mm
紅銅, 鍍銀上鍍銠

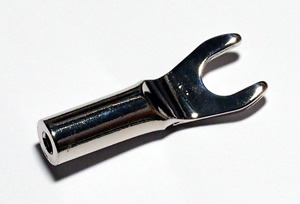

CGMS9R 9mm Milled Y spade,研磨Y插
billet copper, Rhodium over Silver plate, 4mm termination hole

紅銅, 鍍銀上鍍銠, Y插 9mm dia.

CCMS9R 9mm Milled Spade,研磨Y插
billet copper, Rhodium over Silver plate.with .245" cable terminating hole.

紅銅, 鍍銀上鍍銠, .245"線孔徑
CCMSCSS Milled Spade,研磨Y插
billet copper, with .12" cable terminating hole. with screw

紅銅, .12"線孔
研磨Y插 CCMS 9SQ-CCMS R2-CCMS C2-CCMS S
Milled Spade,方型研磨Y插
billet copper, Rhodium over Silver plate.with .12" cable terminating hole.
紅 銅,鍍銀上鍍銠, .12"線孔

(photo shown left to right圖片由左而右)
CCMS 9SQ
Y插 9mm dia.
CCMS R2
Y 插6.5mm dia.
CCMS C2 copper body
紅銅研磨, Y插6.5 mm dia
CCMS S  3mm雙線孔,
Y 插3.3mm dia.


RCA/LXR/S video CAPs(RCA座保護套);
RCAC RCA CAPs插座保護套蓋
Non-shorting,billet brass,nickel plated caps fit over unused female RCA connectors to shield against RFI,EMI,dust and corrosion, no logo

鍍鎳, 防塵外防RFI,EMI和生鏽, 沒有Cardas商標

RCACSS RCA CAP插座保護套蓋
-- 同上 --, 但Signature簽名系列,有商標
RCACspss RCA Shorting Pin CAP插座短路套蓋
 Signature Series, shorting,pin for RCA input, billet brass, nickel plated
, sold in set of two
鍍鎳,防塵外防RFI,EMI和生鏽, RCA短路套蓋
BNCcss BNC CAP插座套蓋
 Signature Series, non-shorting,pin for BNC input to eliminate EMI and RF noise absorption, dust and corrosion, billet brass, nickel plated

鍍鎳,BNC套蓋,防塵外防RFI,EMI和生鏽,Cardas商標
Cardas S Video cap SVDC S Video CAPs S影像插座保護套蓋
 Non-shorting,billet brass,nickel plated caps fit over unused female RCA connectors to shield against RFI,EMI,dust and corrosion.

鍍鎳, 防塵外防RFI,EMI和生鏽
Phono plug cap

GRQcss Cardas Phono Plug Caps 麥克風插座保護套蓋
適用在未使用的插座來減除EMI and RF 雜訊吸收, 防塵與生鏽, 無短路, 完全遮蓋麥克風插座, 銅鎳實體摒蔽防止 EMI 和 RFI
,帶 Cardas logo

LXRC LXR CAPs插座保護套蓋
 Non-shorting,billet brass,nickel plated caps fit over unused female RCA connectors to shield against RFI,EMI,dust and corrosion.

鍍鎳, 防塵外防RFI,EMI和生鏽

LXRCm 公座用
LXRCf 母座用



Phono Boxes & Dins(LP轉盤轉接盒 & 信號插頭);
CPIB Phono Interface Box(upper), CPIB-ST Box with 12 phono lead(bottom)
CPIB Phono Interface Box LP轉盤轉接盒
billet aluminum, black anodized, 2 female RCA, 2 grounding pasts.

鍍黑合 金鋁盒,2個RCA母座&2個接地端

CPTB ST Phono Interface Box with phono lead LP轉盤轉接盒
--ditto-- but terminated with 12" custom Cardas phono lead & straight DIN

同上, 但有唱頭線及DIN插頭

CPTB RT Phono Interface Box with phono lead LP轉盤轉接盒
--ditto-- but terminated with 12" custom Cardas phono lead & right angle DIN

同上, 但有唱頭線及右角度DIN插頭

SDIN Male DIN phono plug
RDIN Male DIN L phono plug
SDIN E (up)/M DIM R(down)
SDIN Female DIN phono plug唱頭線DIN母插頭
5 pin, straight,billet aluminum housing, black anodized

RDIN Female DIN L phono plug唱頭線DIN插頭,L形,鋁合金身
5 pins, 90 degree, billet aluminum housing, black anodized

SDIN E Economy 5pin DIN phono plug
經濟型 唱頭線DIN母插

gold plated pin鍍金腳,Black Delrin Adapter Sleeve

MDIN R 5pin male DIN phono plug
唱頭線 DIN公插

gold plated pin鍍金腳,Rega type Adapter Sleeve,black Delrin




Cardas RCA Plug/XLR轉接頭

CGAFXLR
Cardas鍍銠RCA母插頭/鍍金XLR母插

Female RCA to Female XLR, 鍍銠接點
20mm dia x 48mm

CGAMXLR
Cardas鍍銠RCA母插頭/鍍金XLR公插

Female RCA to Male XLR, , 鍍銠接點
20mm dia x 48mm




Cardas XLR插頭

CGMXLR Cardas 鍍銠/鍍金XLR公插頭
Male XLR, 鍍銠接點, 防磁/RF/Clock signal, 鍍銀之上鍍銠/鍍金, 20mm dia x 49mm

CGFXLR Cardas 鍍銠/鍍金XLR母插頭
Female XLR, 鍍銠接點, 防磁/RF/Clock signal, 鍍銀之上鍍銠/鍍金, 20mm dia x 49mm


Cardas XLR插座

CMMXLR Cardas 鍍銠/鍍金XLR公插座
Male XLR, 鍍銠接點, 防磁/RF/Clock signal, 鍍銀之上鍍銠/鍍金, 21.4mm dia, 31 mm x 26mm

CMFXLR Cardas 鍍銠/鍍金XLR母插座
Female XLR, 鍍銠接點, 防磁/RF/Clock signal, 鍍銀之上鍍銠/鍍金, 21.4mm dia, 31 mm x 26mm


Cardas RCA/Neutrik LXR adapter Cardas RCA Plug/Neutrik XLR轉接頭

CRCAP-R/NC3MX-S
Cardas鍍銠RCA公插頭/Neutrik鍍銀3P公插

CRCAP-R/NC3FX-S
Cardas鍍銠RCA公插頭/Neutrik鍍銀3P母插


Cardas RCA socket/Neutrik LXR adapter Cardas RCA Socket/Neutrik XLR轉接頭

CRCAS-R/NC3MX-S
Cardas鍍銠RCA母插頭/Neutrik鍍銀3P公插

CRCAS-R/NC3FX-S
Cardas鍍銠RCA母插頭/Neutrik鍍銀3P母插


CRCAS-R/MiniXLR

Cardas RCA,XLR/Mini XLR轉接頭

CRCAS-R/MiniXLR-F
Cardas鍍銠RCA母插頭/Mini XLR母插

CRCAS-NC3FX-S/MiniXLR-F
Cardas Neutrik XLR母插頭/Mini XLR母插

* 適用於HRT's Music Streamer Pro USB DAC, AKG earphone接頭

請電詢Cardas其他尚未列名產品
