Cardas plug and socket

CARDAS AUDIO CONNECTORS
RCA Plugs, Sockets, Spades, Binding Post, Solder, Clips and Terminating kits
Manufacturing of USA

Cardas uses the finest materials in the manufacturer of its OEM products, Including: billet eutectic brass, billet ultra pure copper and billet 6061-T6, or 7075-T6 aluminum.

In addition to bare metal components, Rhodium, Gold, Silver and Nickel plating may be specified.

Most of all, Cardas is concerned with the sonic performance of each parts and how it functions mechanically for the component manufacturer.

**Sennheiser Headphone connector**

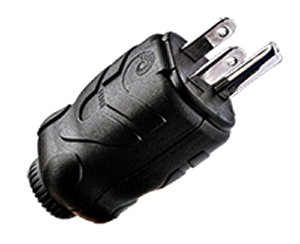

	CDS3455R-CNT Cardas Premium Power Connector, Male Male, Copper blades, plated with rhodium over silver for improved electrical contact and current transfer, compact body and secure fit helps prevent heavy power cables from pulling out of the wall.

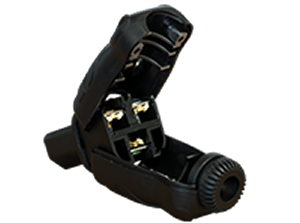

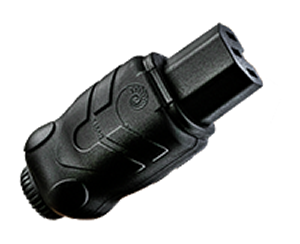

	CDS3455R-CNT Cardas Premium Power Connector, Female Female, Copper Clips, plated with rhodium over silver for improved electrical contact and current transfer, compact body and secure fit helps prevent heavy power cables from pulling out of the wall.

**RCA Socket and Plugs**
	SRCA Ultimate RCA Plug non-magnetic, eutectic Brass, Rhodium over Silver Plated, gold Plated, Spring loaded tip, 9.5mm cable opening, optional 11mm, and 13mm cable opening adapters
	SRCA cable opening adapter non-magnetic, eutectic Brass, Gold Plated CXRCA11 11mm(left in photo) CXRCA13 13mm(right in photo)
	SRCA SR cable opening adapter CXRCA20-B, non-magnetic, eutectic Brass, Gold Plated, bullet shape, 20mm
	GRMO RCA male non-magnetic, eutectic Brass, Rhodium over Silver Plated, gold Plated, Brass cover
	AGMO RCA male non-magnetic, eutectic Brass, gold Plated, 9mm cable opening
	GNCM Economy RCA male Brass, Nickel plate,8 mm cable opening, Brass cover, gold plated
	GRCM7 Small RCA male non-magnetic, eutectic Brass, Rhodium over Silver Plated,8mm cable opening gold Plated, Brass cover
	GRCM6 Small RCA male non-magnetic, eutectic Brass, Rhodium over Silver Plated,6 mm cable opening gold Plated, Brass cover GRCM7 Small RCA male non-magnetic, eutectic Brass, Rhodium over Silver Plated, 8mm cable opening gold Plated, Brass cover
	SLVR RCA male non-magnetic, eutectic Brass,9mm cable opening, silver Plated
	GRNO 90º RCA male non-magnetic, eutectic Brass, Rhodium over Silver Plated,9mm cable opening, Brass cover, gold plated
	GRQ-SM Mono phono Plug Straight, mono, 1/4" phono plug, non magnetic, eutectic brass, Rhodium plate, Brass cover, gold plate GRQ-SS Stereo phono Plug --ditto -- but stereo
	GRQ-RM R 90º Mono phono Plug Right angle, mono, 1/4" phono plug, non magnetic, eutectic brass, Rhodium plate, Brass cover, gold plate

**Sennheiser Headphone connector**
	HPSC Headphone connector For sennheiser headphone replacement cables Rhodium Plated, 32mm length

**"F" Video Plug**
	FGRF "F"Video connector non-magnetic, eutectic Brass, Rhodium over Silver Plated, Brass cover, gold plated

**Chassis Output Binding Post**
	CCBPs short, Glass filled nylon insulator, billet copper
	CCGRs short, billet Brass, Rhodium over Silver Plated,non-magnetic CCGRs short, single billet Brass, Rhodium over Silver Plated,non-magnetic, single post set
	ACBPs short, non-magnetic, Rhodium over Silver Plated
	CPBP Cardas patented Binding post .25" dia. contact post are available in two lengths; 0.25"(S) and 1.5" long(L) Materials on post; 1) non-magnetic, eutectic billet Brass with Rhodium over Silver Plated 2) High purity,billet copper 3) non-magnetic, eutectic billet Brass with nickel Plated 4) Solid silver

**Banana Plugs**
	CABD Double Bananana plug non-magnetic, eutectic Brass, Rhodium over Silver Plated, gold Plated
	CABE Economy Bananana Plug non-magnetic, eutectic Brass, Nickel plate
	MAGY Magnaplaner Connecting Pin non-magnetic, eutectic Brass, Rhodium over Silver Plated

**Speaker Case input Binding Post**
	CCBPL Long,Glass filled nylon insulator, billet copper
	CCGRL long, billet Brass, Rhodium over Silver Plated,non-magnetic
	ACBPL long, non-magnetic, Rhodium over Silver Plated

**Speaker Input By-Pass Connector**
	CLJP Jumper Plate, Adjustable bi-wire, copper CLJPr Jumper Plate, Adjustable bi-wire, Rhodium plating
	CLSCP XLR Short-Circuit Pin Gold plating, 18 mm
	CNDP Speaker Pin billet Brass, Gold Plated
	PCCE Economy cartridge Clips Brass, gold Plated
	PCC Cartridge Clips non-magnetic, billet Brass, gold Plated,set of 4

**Grounding Post**
	GRND Grounding Post non-magnetic, eutectic Brass, Rhodium over Silver Plated, brass nut, gold plated

**Female RCA**
	GRFAs Short RCA Female non-magnetic, eutectic Brass, Rhodium over Silver plate, gold plated, 29mm GRFAL Long RCA Female non-magnetic, eutectic Brass, Rhodium over Silver plate, gold plated, 35.5mm
	GRFA-PRT PCB mount RCA Female right angle, non-magnetic, eutectic Brass, Rhodium over Silver plate.gold plated
	GRFA-PS PCB mount RCA Female Straight, non-magnetic, eutectic Brass, Rhodium over Silver plate.gold plated
	CTFA RCA Female non-magnetic, eutectic Brass, gold plated, brass nut gold plated

**Female BNC**
	GRBNCR PCB mount BNC Right angle, non-magnetic, eutectic Brass, Rhodium over Silver plate
	GRBNCs PCB mount BNC Straight, non-magnetic, eutectic Brass, Rhodium over Silver plate.

**Spades**
	GRSR Stamped spade 2 pcs set, copper,Rhodium over Silver plate.Copper sleeve,gold plated .245" cable terminating hole
	CCMSR1 Milled Colver Milled Spade billet copper, Rhodium over Silver plate.with .12" cable terminating hole.
	CCMSRXL Milled Colver Milled Spade billet copper, Rhodium over Silver plate.with .275" cable terminating hole and an extra .25 " depth., new
	BTS9 Milled Banana to Adaptor billet copper, Rhodium over Silver plate.with Y spade of 9mm dia. opening new BTS Milled Banana to Adaptor billet copper, Rhodium over Silver plate.with Y spade of 7mm dia. opening new
	CCMS9R 9mm Milled Spade billet copper, Rhodium over Silver plate.with .245" cable terminating hole.
	CCMSCSS Milled Spade billet copper, with .12" cable terminating hole. with screw

**RCA/S Video/LXR CAPs**
	RCAC RCA CAP Non-shorting,billet brass,nickel plated caps fit over unused female RCA connectors to shield against RFI,EMI,dust and corrosion, no logo RCACSS RCA CAP -- ditto -- but Signature series with Cardas logo
	RCACspss RCA SHORTING CAP shorting pin caps for RCA input, billet brass,nickel plated caps, sold as set of 2
	BNCcss BNC CAPs Signature series, Non-shorting,billet brass,nickel plated caps fit over unused connectors to eliminate RF noise absorption, EMI,dust and corrosion
	SVDC S Video CAP Non-shorting,billet brass,nickel plated caps fit over unused female RCA connectors to shield against RFI,EMI,dust and corrosion.
	GRQcss Cardas Phono Plug Caps fit into unused phono plug connectors to eliminate EMI and RF noise absorption, dust and corrosion. non shorting, completely cover the phono plug connector's opening, solid shield of Nickel and Brass to prevent EMI and RFI , With Cardas logo
	LXRC LXR CAP Non-shorting,billet brass,nickel plated caps fit over unused female LXR connectors to shield against RFI,EMI, dust and corrosion. *for female and male sockets

**Phono Boxes & Dins**
	CPIB Phono Interface Box billet aluminum, black anodized, 2 female RCA, 2 grounding posts, unassembled. CPTB ST Phono Interface Box with phono lead --ditto-- but terminated with 12" custom Cardas phono lead & straight DIN CPTB RT Phono Interface Box with phono lead --ditto-- but terminated with 12" custom Cardas phono lead & right angle DIN
	SDIN Female DIN phono plug 5 pin, straight,billet aluminum housing, black anodized RDIN Female DIN L phono plug 5 pins, 90 degree, billet aluminum housing, black anodized SDIN E Economy 5pin female DIN phono plug gold plated pin, Delrin Adapter Sleeve MDIN R 5pin male DIN phono plug gold plated pin, Rega type adapter Sleeve, black Delrin

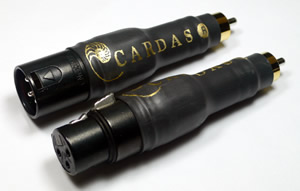

Cardas RCA/XLR adaptor

CGAFXLR Cardas Female RCA to Female XLR
Rhodium plated RCA plug/ gold plated XLR female plug, Rhodium contact, 20mm dia. x 48mm

CGAMXLR Cardas Female RCA to Male XLR
Rhodium plated RCA plug/ gold plated XLR male plug, Rhodium contact, 20mm dia. x 48mm

CGMXLR Cardas Male XLR plug
Rhodium plated, non-magnetic, eutectic billet brass, gold and phodium over silver plating, end shielding block RF/clock signal,
20mm dia. x 49mm

CGFXLR Cardas Female XLR plug
Rhodium plated, non-magnetic, eutectic billet brass, gold and phodium over silver plating, end shielding block RF/clock signal,
20mm dia. x 49mm

CMMXLR Cardas chassis mount Male XLR
Rhodium plated, non-magnetic, eutectic billet brass, gold and phodium over silver plating, end shielding block RF/clock signal,
21.4mm dia., 31mm x 26mm

CMFXLR Cardas chassis mount Female XLR
Rhodium plated, non-magnetic, eutectic billet brass, gold and phodium over silver plating, end shielding block RF/clock signal,
21.4mm dia., 31mm x 26mm

Cardas RCA plug/Neutrik XLR adaptor

CRCAP-R/NC3MX-S
Rhodium plated RCA male plug to Neutrik male XLR with silver plated contact.

CRCAP-R/NC3FX-S
Rhodium plated RCA male plug to Neutrik female XLR with silver plated contact

Cardas RCA socket/Neutrik XLR adaptor

CRCAS-R/NC3MX-S
Rhodium plated RCA female socket to Neutrik male XLR with silver plated contact

CRCAS-R/NC3FX-S
Rhodium plated RCA female socket to Neutrik female XLR with silver plated contact

Cardas RCA.XLR/Mini XLR adaptor

CRCAS-R/MiniXLR-F
Rhodium plated RCA female socket to Mini female XLR

CRCAS-NC3FX-S/MiniXLR-F
Neutrik female XLR with silver plated contact to Mini female XLR

* HRT's Music Streamer Pro USB DAC, AKG earphone connector
