Holco軍規電阻庫存阻值表 Capacitance values in stock;
Made
in England英國製
*特別聲明
- 以下為Holco公司併購前存貨
-
與併購後新貨尺寸比較, 價格相差約一半!
不同規格如下;
- 1/2W 50ppm, tol 0.5%

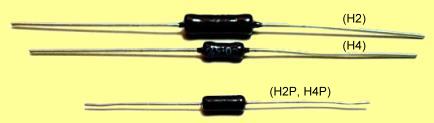

* 併購前存貨(H4):電阻身長9mm, 0.8mm引腳線徑, 總長84mm(上圖)
* 新貨電阻(H4P):身長9mm, 0.6mm引腳線徑, 總長61mm
(下圖所示)
* 新貨會導磁
-1W H2 50ppm,tol 0.5%
* 併購前存貨(H2):電阻身長15mm, 0.8mm引腳線徑, 總長90mm(上圖)
* 新貨電阻(H2P):約身長9mm, 0.6mm引腳線徑, 總長61mm(同1/2W, 下圖所示)
* 新貨會導磁
|
 精確金屬皮膜Metal film resistor, 1/2W & 1W,tol 0.1%, 50PPM
H4, 1/2W:
20, 24, 33.2, 43.2, 56.2, 71.5, 82, 88.7, 100, 113, 147, 191, 200, 249, 324, 330, 402, 487, 604, 620, 750, 768, 1K, 1K2, 1K33, 1K78, 1K8, 2K52, 3K33, 4K53, 6K04, 6K8, 7K8, 8K2, 18K, 30K, 33K, 56K, 68K, 560K
H2, 1W:
20, 22, 24, 33, 39, 47, 51, 68, 75, 82, 120, 200, 220, 270, 300, 390, 510, 620, 680, 750, 820, 1K, 1K5, 2K, 2K7, 5K1, 15K, 24K, 33K, 50K, 51K, 100K, 200K, 240K, 300K, 470K & 1M5
精確金屬皮膜 Metal film resistor
1/2W, H4,50PPM, tol 0.5%
1, 2.2, 3.3, 4.7, 5.6, 6.8, 7.5,8.2, 10, 12, 15, 18, 20, 22, 24, 27, 30, 33, 36, 39, 43, 47, 50, 51, 56, 62, 68, 75, 82, 91, 95,
100, 110, 120, 130, 150, 160, 180, 200, 220, 240,250, 270, 300, 330, 360, 390, 430, 470, 500, 510, 530, 560, 590, 620, 680, 710, 750, 780, 790, 820, 910, 970,
1K, 1K1, 1K2, 1K3, 1K5, 1K6, 1K8, 2K, 2K2, 2K4, 2K5, 2K7, 3K, 3K3, 3K6, 3K9, 4K3, 4K7, 5K1, 5K6, 5K9, 6K2, 6K8, 7K5, 7K8, 8K2, 9K1, 9K5,
10K,12K, 13K, 15K, 16K, 18K, 20K, 22K, 24K, 25K,27K, 30K, 33K, 36K, 39K, 43K, 47K, 51K, 56K, 62K, 68K, 72K, 75K, 82K, 85K, 91K,
100K, 120K, 130K, 150K, 160K, 170K, 180K, 200K, 220K, 240K, 250K, 270K, 300K, 301K, 330K, 360K, 390K, 402K, 430K, 442K, 464K, 470K, 500K, 510K, 560K, 620K, 680K, 750K, 820K, 910K,
1M, 1.5M, 2.0M, 2.2M, 3.3M, 4.7M
 波段開關組選擇器VR,組含46pcs,1/2W
HOLCO 1/2W,10K阻值組 & 50-500K阻值組
精確金屬皮膜Metal film resistor
H2 1W , tol 0.5%, 50PPM
1, 2.2, 3.3, 4.7, 5.6, 6.8, 10, 12, 15, 18, 20, 22, 24, 27, 30, 33, 36, 39, 43, 47, 51, 56, 68, 75, 82, 91,
100, 110, 120, 130, 150, 160, 180, 200, 220, 240,250, 270, 300, 330, 360, 390, 430, 470, 510, 560, 620, 680, 750, 820, 910,
1K, 1K1, 1K2, 1K3, 1K5, 1K6, 1K8, 2K, 2K2, 2K4, 2K5, 2K7, 3K, 3K3, 3K6, 3K9, 4K3, 4K7, 5K1, 5K6, 5K9, 6K2, 6K8, 8K2, 9K1,
10K,12K, 13K, 15K, 16K, 18K, 20K, 22K, 24K, 27K, 30K, 36K, 39K, 43K, 47K, 56K, 62K, 68K, 75K, 82K, 91K,
100K, 120K, 130K, 150K, 180K, 200K, 220K, 240K, 250K, 270K, 300K, 301K, 330K, 360K, 390K, 430K, 470K, 510K, 560K, 680K, 750K, 820K, 910K,
1M, 1.5M, 2.2M, 4.7M
* 併購後新貨H2P, H4P即將到貨
 以上未列名阻抗值請電洽
Last updated on 2/25/05
|
