Taiwanese made
Fine quality Plugs and Sockets..etc
 Taiwan known as being the best source for fine
quality of OEM mfg. RCA plugs, sockets and binding post at highly cost performance.
These no brand high standard product are all with quality gold plating, satin finish or tin nickeled plating.
Your oem Brand and logo is welcomed and accepted
Teflon insulation are applied
Most items listed below are RoHS compliant
Plugs
 |
TCPm Female RCA Plug
nickel/gold plated finish, 12mm dia. x 37 mm
holds cable up to 6 mm dia., teflon dielectric |
 |
TCBPP Banana Plug
grey/gold finish, 63mm |
 |
TOBP-cs compact Banana Plug
Silver plated, holds cable up to 6 mm dia. 10.5 dia. x47mm
TOBP-cg -ditto-, but Gold plated |
|
TOBP-rng Banana Plug
pin in extend gold plated, rotary shape
finish:
shell both in tin nickeled plating of shine chrome and dull velvet tin nickeled finish
12 dia. x 47 mm(shell 12 mm dia x 26 mm)
|
 |
OdoBPG-GP Banana Plug
Crimp style, extend gold plated, rotary
8 mm dia. x 43 mm
holds for up to 5mm dia. wire, 2 fixing screws |
 |
ITBP-g IT Banana Plug
gold plated, holds cable up to 6 mm dia.
size:
11 dia. x48 mm |
 |
TOBP-ng Round Banana Plug
gold plated, tin nickeled plating shell, holds cable up to 6 mm dia., 11 dia. x46 mm |
 |
TOBP-ctn compact Banana Plug
gold plated pole, tin nickeled plating shell, holds up to 8 mm dia. 10.5 dia. x47mm |
 |
TCP RCA Plug
grey/gold finish, 52mm
holds cable up to 9 mm dia. |
 |
TCP-HEXB RCA Plug
tin nickeled plating of dull velvet finish
screw clamp and splited pole
13mm hex., body: 45mm, overall: 51mm
holds cable up to 9 mm dia. |
 |

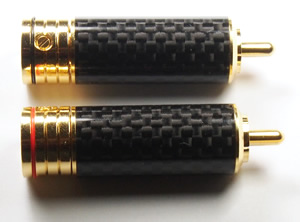

TCPcfb RCA Plug with carbon fibre shell
high grade gold plated finish with carbon fibre none magnetic shell housing
screw clamp, 13m dia.,body: 42mm, overall: 49mm
holds cable up to 8 mm dia.
TCPcfb-R RCA Plug with carbon fibre shell
-- ditto --
but Rhodium Plated |
 |
TCP-JB Jumbo RCA Plug
nickeled/gold finish, 17.5mm dia. x 39mm
holds cable up to 11.5 mm dia |
Phono Plug
 |
TCPP-35 3.5 Stereo Phono Plug
plug in gold plating and shell in tin nickeled plating of glossy finish
size: 12 mm dia. x 44 mm long
3.5mm, stereo
|
|
TCPPcfb-254 2.5 Stereo Phono Plug
gold plated with carbon fibre none magnetic shell housing
size: 8 mm dia. x 33 mm length
2.5mm pin, Balance(4 contact points), holds cable up to 3.5 mm dia
TCPPcfb-253 2.5 Stereo Phono Plug
gold plated with carbon fibre none magnetic shell housing
size: 8 mm dia. x 33 mm length
2.5mm pin, stereo, holds cable up to 3.5 mm dia
TCPPcfb-353 3.5 Stereo Phono Plug
gold plated with carbon fibre none magnetic shell housing
size: 8 mm dia. x 36 mm length
3.5mm pin, stereo, holds cable up to 3.5 mm dia
TCPPcfb-358 3.5 Stereo Phono Plug
gold plated with carbon fibre none magnetic shell housing
size: 13 mm dia. x 45 mm length
3.5mm pin, stereo, holds cable up to 8.5 mm dia |

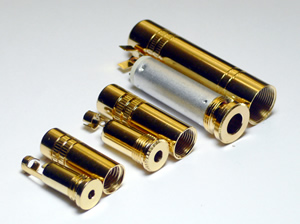

Phono Jack connectors
|
TCPJ-25 2.5 Stereo Phono Jack Connector
size: 9 mm dia. x 26 mm long
2.5mm, stereo, jack socket in gold plating and teflon dielectric, shell in gold plated, hold cable up to 6.2mm.
TCPJ-35 3.5 Stereo Phono Jack Connector
-- ditto --
size: 10 mm dia. x 33 mm long, 3.5mm dia.
, hold cable up to 6.3mm.
TCPJ-65 6.5 Stereo Phono Jack Connector
-- ditto --
size: 12 mm dia. x 57 mm long, 6.5mm dia.
, hold cable up to 8.2mm.
|
RCA Sockets
|
TCS806 RCA Socket
gold/satin finished,teflon dielectric, 29mm
|
 |
TCS-fmx RCA Socket
gold finished,teflon dielectric, front mount, 29mm, fixing hole of 10mm
TCS-fmx-ug RCA Socket
-- ditto-- but upgraded version for 5um gold plating |
 |
TCS-pcb RCA Socket, PCB
gold finished,teflon dielectric, PCB board mount, 35mm Lx 13mm H, fixing hole of 11.5mm,
fix pin(2mm)-pin:12mm(overall),
lead pin(1mm) -pin: 3.35mm
(overall),
Max lead pin - fix pin:9mm & 6.5mm,
lead - fix pin: 6.5mm
color code: black, red
|
|
TCST RCA Socket
gold plated,teflon dielectric, 30mm, fixing hold of 9.3mm
TCST-ug RCA Socket
-- ditto-- but upgraded version for 5um gold plating
TCST-CMC RCA Socket
--ditto-- but CMC logo engraved
TCST-ug-CMC RCA Socket
--ditto-- but silver plated, with CMC logo engraved |
 |
TCS-ds RCA Socket
Mogami, made in Japan, gold plated,teflon dielectric, 27.5mm, fixing hole of 10mm
|
|

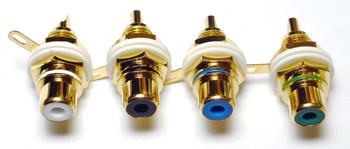

TCS RCA Socket
gold finished,teflon dielectric, 29mm, fixing hole of 8.5 mm
color code: white, black, blue, green |
 |
TCSs compact RCA Socket
gold finished,teflon dielectric, 21mm, fixing hole of 6.5 mm |
 |
TCS-cube RCA Socket
gold finished,teflon dielectric, 32mm, fixing hole of 10mm |
Binding Post
 |
TCBPs-p CMC Binding Post
with CMC logo, covered with Plastic protector, gold plated, 19 x 39mm
|
 |
TCBPs-E Binding Post
covered with Plastic protector, gold plated,
accept banana, Y spade and holds 5.5mm dia. wire,
about 9 mm length of hole through, color code of red and white, RoHS compliant
overall: 19mm x 47mm |
 |
TCBPm-E Binding Post
covered with Plastic protector, gold plated,
accept banana, Y spade and holds 5.5mm dia. wire, about 16mm length of hole through, color code of red, black and white, RoHS compliant
overall: 19mm x 50mm |
 |
TCBPm-Ei OdiO Binding Post
--ditto -- but with Odio logo, thicker gold plating in 4 um
about 8 mm length of hole through
overall: 19mm x 47mm |
 |
TCBPL-E Binding Post
covered with Plastic protector, gold plated,
accept banana, Y spade and holds 5.5mm dia. wire, about 30 mm length of hole through, color code of red and white, RoHS compliant
overall: 19 mm x 65 mm |
 |
TCBPs-ag Binding Post
covered with Plastic protector, silver plated,
accept banana, Y spade and holds 5.5mm dia. wire, about 8 mm length of hole through, color code of red and white, RoHS compliant
overall: 19mm x 47mm |
 |
TCBPL-ph Binding Post
gold plated finish, accept banana, Y spade and holds 6.5mm dia. wire, about 33mm length of hole through
overall: 19mm x 64mm,
* no stock now |
 |
TCBP-m-h Binding Post
gold plated finish, accept banana, Y spade and holds 7.5mm dia. wire, 10mm length of hole through
overall: 14mm x50mm |
 |
TCBP-L-h Binding Post
gold plated finish, accept banana, Y spade and holds 7.5mm dia. wire, 28mm length of hole through
overall: 14mm x68mm |
 |
TCBP-L-sg Binding Post
dull gold plated finish, accept banana, Y spade and holds 5.38mm dia. wire, 28.5mm length of hole through
overall: 13.5mm x61.8mm |
 |
TCBP41 Compact Binding Post
gold plated finish, accept banana, Y spade and holds 4mm dia. wire, 41mm length of hole through
overall: 11 mm x42 mm |
 |
TCBP-s-sg Binding Post
dull gold plated finish, accept banana, Y spade and holds 5.38mm dia. wire, 6.5mm length of hole through(including gasket)
Overall: 13.5x41mm |
|
TCBP-s Binding Post
gold plated finish, accept banana, Y spade and holds 7.2mm dia. wire,
6.5mm length of hole through(including gasket)
Overall: 13.7x41mm
|
|
TCBP-878 Binding Post
gold plated finish, accept banana, Y spade of 16mm max/5mm open and holds 2 of 5mm dia, wire, 11mm length of hole through(excluding gasket)
Overall: 20mm dia. x54mm long
|
 |
ITBP-7111 Interteck Binding Post
gold plated, accept banana, Y spade of 8mm max/2mm open and holds 6mm dia wire, 43mm length of hole through
Overall: 11mm dia. x71 mm long |
 |
TCBP-4812 Binding Post
gold plated, accept banana, Y spade of 9mm max/6mm open and holds 5mm dia wire, 30mm length of hole through(excluding gasket)
Overall: 12mm dia. x55 mm long |
 |
TCBP-sp-4633 Binding Post
gold plated finish, accept banana, Y spade of 8mm max/5mm open and holds 5.4mm dia. wire, 11mm length of hole through(excluding gasket)
Binding Post: 24mm dia. x46mm L
Overall:38 x 19 x 46 mm |
RCA to Xlr Adaptor
|
TRXAdpcbf-f2f XLR to RCA Adaptor
Female RCA to female XLR,70 x 19 mm dia. , teflon insulation
gold plated pin contact with carbon fibre none magnetic shell housing
TRXAdpcbf-m2f XLR to RCA Adaptor
Male XLR to female RCA ,58 x 19 mm dia. , teflon insulation
gold plated pin contact with carbon fibre none magnetic shell housing
|
RCA/Xlr Caps
 |
Txlrc XLR cap
gold plated with teflon insulation, 22mm dia. x 22mm (D)
|
|
Txlrc XLR cap
gold plated with teflon insulation, 22mm dia. x 22mm (D)
Txlrcs XLR cap with shorting pin
gold plated with teflon insulation and shorting pin, 21mm dia. x 16mm (D)
|
RCA Adaptor
|
TRCAdp-m2f Multi RCA Adaptor
Male - 2xFemale RCA,49 mm, teflon insulation
spin machined female pole connection, gold plated
|
 |
TRCAdp-ff Female RCA Extander
Female to female RCA, 31mm, teflon insulation
spin machined pole connection, gold plated |
 |
TRCAdp-m2ft T shape Multi RCA Adaptor
Male -2xFemale RCA,53 x 24mm, teflon insulation
spin machined female pole connection, gold plated |
|
TRCAdp-mf L shape Multi RCA Adaptor
Male - Female RCA,32 x 34mm, teflon insulation
spin machined female pole connection, gold plated |
Cable Splitter Cap
 |
TCSP-2 2 ways Cable Splitter cap
size: 20 mm dia. x 46mm long
holds cable up to 12mm dia. and splitting cable up 6mm dia. of 2 ways.
head in gold plating and shell in tin nickeled plating of dull velvet finish, with rubber band grip |
|
TCSP-4 4 ways Cable Splitter cap
size: 20 mm dia. x 46mm long
holds cable up to 15mm dia. and splitting cable up 4.5mm dia. of 4 ways.
head in gold plating and shell in tin nickeled plating of dull velvet finish, with rubber band grip
|
 |
TCSP-MC Multi Cable Splitter cap
size: 13.3 mm dia. x 31.4 mm long
holds cable up to 10mm dia. and splitting cable up 10mm dia. of multi ways. head in chrome plating with carbon fibre none magnetic shell housing. with two fixing hex screws |
USB 2.0 Plugs
 |
USB2A USB 2.0 series A Plug
Gold plated housing and pin contact
size: overall length 36.5mm
|
 |
USB2B USB 2.0 series B Plug
Gold plated housing and pin contact
size: overall length 8 mm x 36.5mm |
 Contact us for else items not listed on the page
|
