SBACOUSTICS > TWEETERS > SB29RDC-C000-4

SB29RDC-C000-4

SPECIAL FEATURES

  • Non-resonant diaphragm design for minimum high frequency break-up
  • Dual balanced compression chamber for improved dynamics
  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Saturation controlled motor system for low distortion
  • Non-reflective rear chamber with optimized damping for improved dynamics
  • Flow optimized vented pole piece for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency

  • Click to download PDF
加入購物車..
SB29RDC-C000-4

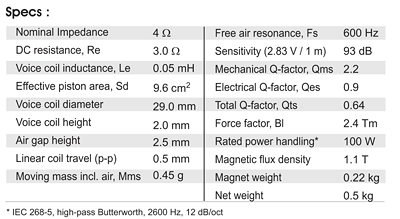

SB29RDC-C000-4-specs
SB29RDC-C000-4-detail

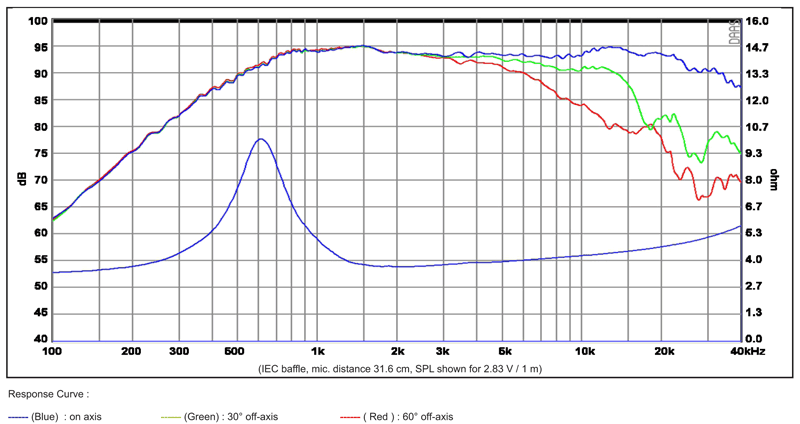

SB29RDC-C000-4-chart
