原廠網站參考
56 years 1950-2005 Superior Loudspeakers
Made in Norway挪威製

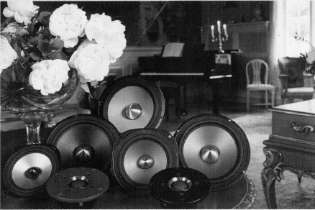

SEAS喇叭單體家族
系列產品&2001原廠設計套件終於推出了!原廠套件陸續供應中!

22TFF H1280
SEAS 19TF/D 高音
SEAS T25CF-001 高音
SEAS 25tafc/g高音
seas 27tff高音
SEAS melliem 高音
seas 25TFFN/G高音
SEAS 25TAFN/G高音
SEAS W15CY001
SEAS W18E002
P17rexCoax/f 同軸全音域喇叭單體
seas MP14rcy
SEAS P17retv 防磁多媒體用
SEAS P25REX
EXOTIC T35 tweeter
EXOTIC W8  8" woofer
EXOTIC F8  8" full range

SEAS P11RCY
SEAS l21RNX/P
seas P25REX

10英吋 低音 W26FX-001


Lotus automobile kit

Standard, Excel by seas
 MODEL 說明 Fs Hz Qts Xmas m/m Power Walt
S/L term
SPL 1W/1M
19TAF/D 高音,19mm,鋁盆, 8Ω,4k-20k 1700 - 0.5 (p-p) 220/90 88
19TFF1 高音,19mm, precoated fabric, 8Ω,4k-20k 1700 - 0.5 (p-p) 200/80 87
25TFFN/G 高音,25mm, precoated fabric, 6Ω,3k-25k, 銣磁, 車用 1800 - 0.5 (p-p) 220/90 89
25TAFN/G 高音,25mm, precoated fabric, 6Ω,3k-25k, 銣磁, 車用 1800 - 0.5 (p-p) 240/100 89
25TAC/GW-TH 高音,25mm, 6Ω,網蓋, 2k-25k, 鋁盆,纖維塑料身 1800 - 0.5(p-p) 240/100 89
T25CF001 高音,25mm, SONOTEX fabric dome, 銀音圈, 6Ω 750 - 1.6 200/90 90
T25CF002 高音,25mm, SONOTEX dome, SONOMAX 懸邊, 6銣磁,6Ω 500 - 1.5 200/90 88
27TFFC 高音,27mm, SONOLEX懸邊+dome, 6Ω 900 - 0.5 (p-p) 200/80 91
27TAFC/G 高音,27mm, SONOLEX懸邊,鋁鎂dome, 6Ω 900 - 0.5 (p-p) 220/90 91
L11RCY/P 4.5"迷你低音,  鋁盆, 55-3.5K, 8Ω 53 0.23 9 200/70 86
P11RCY 4.5"低音, PP盆, 45-4K, 8Ω 55 0.23 9 200/60 86
L14RCY/P 5"低音, 鋁盆, 45-3K, 8Ω 39 0.21 6 (p-p) 400/120 90
MP14RCY 5"中音, PP盆, 100-4K, 8Ω 43 .18 5 100 90
W14CY001
Excel低/低中音, 5", 紙盆, 50-3K,8Ω 43 .36 14 200/70 87
P14RC4Y/DC 低音, 5", PP盆, 43-4K, 8Ω 35 .15 14 250/75 88
P14RCY/P 低/低中音, 5", PP盆, 45-4K, 8Ω 40 .19 14 250/60 90
P14RC/TV 低/低中音/中音, 5", 防磁, 45-4K, 8Ω 40 .19 14 250/60 90
T14RCY/P-H
低中音/中音, 5", XP盆,45-4k, 8Ω
40 0.2 14 250/60 89
T14RCY 低/低中音, 5", TPX/PP盆, 50-3.5K, 8Ω 42 0.28 14 250/60 86.5
W15CH001
New
Excel低/低中音, 5", 紙盆, 50-3K,8Ω 41 .45 14 200/70 85
MCA15RCY
New
中音, 5", 紙盆, 100-400,8Ω 51 .25 14 300/100 90
W15CY001 Excel低/低中音, 5", 紙盆, 50-3K,8Ω 37 .34 14 200/70 86
P17RE/TV 低音, 6.5",  40-3000,8Ω 34 .27 19 250/80 88.5
P17REX 低音, 6.5",  PP盆, 40-3000,8Ω 34 .24 19 250/80 89
P17RE/TV 低音, 6.5", PP盆, 防磁, 40-3K,8Ω, 34 0.27 19 250/80 88.5
W18E001 Excel低/低中音, 6.5",  40-2500,8Ω 31 0.34 19 250/100 86.5
W18EX001 Excel低/低中音, 6.5", 紙盆, 40-2.5K,8Ω 31 .24 19 250/100 88
P21REX 8"低音,PP盆,鎂盆架,專利動態阻尼,8Ω 33 .37 20 250/80 91
W21EX001 Excel低/低中音, 8 ",  30-2000,8Ω 27 .37 21 300/120 87.5
W22EX001 Excel低/低中音, 8", 紙盆, 30-2K, 8Ω, 鎂盆架, 27 0.34 21 300/120 90.5
P25REX 10"低音, PP盆,專利動態阻尼DD, 30-2500,8Ω 27 .44 20 300/80 93
W26FX001
New
Excel低/低中音, 10 ", 紙盆, 20-1K, 8Ω, 鎂盆架,高輸出 20 0.35 35 400/150 87

19TAF/D

25TAF/D + P17REX

25TAFC/D + P17REX
25TFFN/QG

22TFF
2 7TAFNC/D
27TFFNC/G
29TFT/W
RT27F

T29AF001
T29CF002

CA11RCY/P
W11CY001
19TAF/G
W15CH001
CA15RLY
CA18RLY

CA26RFX
new

ER15RLY
ER18RNX
new

P14RC
CB17RCY/P
SP21R
SW250
SW300
RM110
11FG08
11FGX08
CW30FY001
CW25FY001

W12CY001
W18NX001
W15LY001
T25C003
T25CF002

T14RCY/P-H
RW165/1

EXOTIC T35
EXOTIC W8

X1-08
EXOTIC F8
new



*庫存產品規格, 請參考製造廠的網頁規格與尺寸

Car Drivers
 MODEL 說明 Fs Hz Qts Xmas m/m Power Walt
S/L term
SPL 1W/1M
25TAF/D 高音,25mm, 鋁盆, 6Ω,3k-25k 1400 - - 240/100 90
25TFFC 高音,25mm, precoated fabric盆, 6Ω,2k-25k 1200 - 0.5 200/80 90
CT25AF001 Lotus 高音, 25mm, 鋁盆, 6Ω,750-25k, 銣磁, 車用 750 - - 250/100 88
CW17E001 Lotus低/低中音, 6.5",  54-3500 ,4Ω 54 .42 - 250/100 88
CW17E003 Lotus低/低中音, 6.5",  53-3000 ,4Ω 53 .41 19 250/80 91.3
CT25FF001 Lotus高音, 25mm, precoated fabric, 6Ω,3k-25k, 銣磁, 車用 1800 - - 220/90 89
CW30FY001
Lotus超低音, 12 ",  25-900, 4Ω 20 .34 44 1500/500 89



Lotus Lotus汽車喇叭單體昇級套件
2 pcs CT25AF001高音+ 2pcs CW17E001低中音網蓋 + 高音與低音分頻器+( 1pc CW21EX001超低音;另購) + 按裝棉手套
白禮盒包裝

Item no.                  Description     Details
CT25AF001            L0001-06       25 mm High-End高音
CW17E001              L0010-04      17 cm High-End 低中音
CW21EX001           L0011-04      21 cm High-End  超低音

The Reference         L5001           組套含 2x Tweeter, 2x 17cm woofer + 分頻器
CW17PG/L              L9301           CW17E001 保護網蓋
CW17PG                 L9302           CW17E001 保護網蓋不含商標
HPF/CT25AF001    L9001            高通濾波器 for CT25AF001
LPF/CW17E001      L9002            低通濾波器 for CW17E001


P.S. Above specifications subject to change without notification
Last updated on 5/26/11
