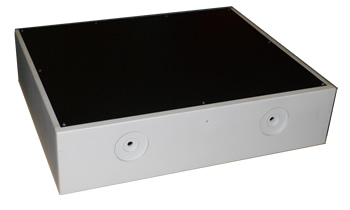

PRAL-443510BW All Alum. Chassis for Pre. amp.
Overall size: 43.8cm(W) x 35.5cm(D) x 10.4 cm(H)
Face Panel: 43.8cm (W)x 10.4 cm(H)
Thickness: side board(10mm)/front board at 12mm, top/bottom board at 3mm/5mm

Pre- cutout/hole:
- Front Input Select and volume control, recess of 4 mm Depth. x 50mm(Dia.)
- Led hole: 3mm dia

Finish: hair brushed in anodized plating, top & bottom in black, face panel in light grey finish.
net weight: 6.5kgs

Optional:
for back panel pre-cutout/hole;
Back panel flat, no hole(rflat)

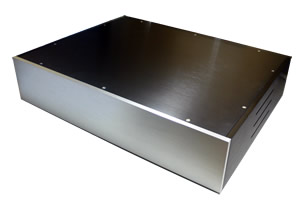

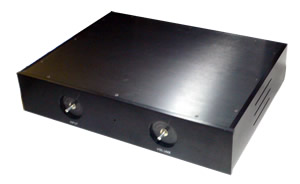

PRAL-43339L All Alum. Chassis for Pre. amp.
Overall size: 43cm(W) x 33cm(D) x 9 cm(H)
Face Panel: 43cm (W)x 9 cm(H)
Thickness: side board/front board at 8mm, top/bottom board at 5mm/3mm

Pre- cutout/hole:
- Front Input Select and volume control, recess of 6 mm Depth. x 52mm(Dia.)
- Led hole: 3mm dia

Finish: hair brushed in anodized plating in black , natural and face panel in natural / body in black finish
net weight: 5.2 kgs

Optional:
for Face Panel ;
Face Panel falt, no hole(fflat)

for Back Panel Pre-cutout/hole;
Back Panel flat, no hole(rflat)
Back Panel Pre-cutout/hole(rca9)
- INPUT: 4 hole or 2 sets for inputs(11.8mm dia)
- OUTPUT: 2 hole for Pre. out(11.8mm dia)
- Power socket:of 28 x 20 mm cut out , with 2 fixxing screw hole
- Power Switch cutout:of 14 x 20.5 mm cut out, for snap-in type
- fuse hole in 16mm dia.

Back Panel Pre-cutout/hole(pwr3)
- Power socket:of 28 x 20 mm cut out , with 2 fixxing screw hole
- Power Switch cutout:of 14 x 20.5 mm cut out, for snap-in type
- fuse hole in 16mm dia.

Back Panel Pre-cutout/hole(xlr19)
- INPUT: 8 hole or 4 sets for inputs(11.8mm dia)
- OUTPUT: 4 hole for Pre. out(11.8mm dia)
- XLR: 4 hole of 23.2mm dia.
- Power socket:of 28 x 20 mm cut out , with 2 fixxing screw h*ole
- Power Switch cutout:of 14 x 20.5 mm cut out, for snap-in type
- fuse hole in 16mm dia.

PRAL-433312L All Alum. Chassis for Pre. amp.
--ditto -- front panel and back panel option same as PRAL-43339L but height in 12 cm(H)
Overall size: 43cm(W) x 33cm(D) x 12 cm(H)
Face Panel: 43cm (W)x 12 cm(H)

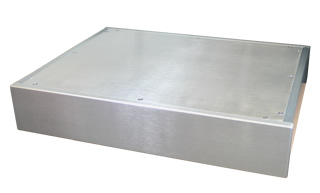

PRAL-43348 All Alum. Chassis for Pre. amp. New
Overall size: 43cm(W) x 34cm(D) x 8 cm(H)
Face Panel: 43.4cm (W)x 8 cm(H)
Thickness: side board/front board at 12mm, top and bottom board at 3mm

Back panel recessed of 9mm, leave 3mm thickness for plug mounting and hole drill.

Optional:
All falt, no hole(fflat)
Back Panel Pre-cutout/hole(pwr3)
- Power socket:of 28 x 20 mm cut out , with 2 fixxing screw hole
- Power Switch cutout:of 14 x 20.5 mm cut out, for snap-in type
- fuse hole in 16mm dia.

Finish: hair brushed in anodized plating in black , natural
net weight: 6.25 kgs

Pre- cutout/hole:
- Front Input Select and volume control, recess of 5.5mm D. x 31mm(Dia.)
- Led hole: 3mm dia

Finish: hair brushed in anodized plating in black and natural finish
net weight: 4.1 kgs

Optional:
for Back Panel Pre-cutout/hole;
Back Panel Pre-cutout/hole(rca9)
- INPUT: 4 hole or 2 sets for inputs(11.8mm dia)
- OUTPUT: 2 hole for Pre. out(11.8mm dia)
- Power socket:of 28 x 20 mm cut out , with 2 fixxing screw hole
- Power Switch cutout:of 14 x 20.5 mm cut out, for snap-in type
- fuse hole in 16mm dia.

Back Panel Pre-cutout/hole(pwr3)
- Power socket:of 28 x 20 mm cut out , with 2 fixxing screw hole
- Power Switch cutout:of 14 x 20.5 mm cut out, for snap-in type
- fuse hole in 16mm dia.

Back Panel Pre-cutout/hole,(flat, no hole)

Pre- cutout/hole:
- Led hole: 3mm dia

Back Panel Pre-cutout/hole;
- Power socket:of 28 x 20 mm cut out , with 2 fixing screw hole, print in "AC110V, AC220V"
- Power Switch cutout:of 14 x 20.5 mm, for snap-in type
- fuse hole in 13mm dia.

Finish: hair brushed in anodized plating, in black and natural finish
net weight: 2.84 kgs

Shipped with following parts;
- 1 pc of ST/SM Swiss Schurter male Power socket
- 1pc of BSFH-rh American BUSS fuse socket
- 1pc of SCH1552-16A Schurter rock switch

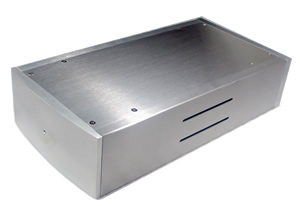

PRAL-20309r Oblong All Alum. Chassis
Overall size: 20cm(W) x 30cm(D) x 9 cm(H)
Face / rear Panel: 20cm (W)x 9 cm(H), both left/right edges in 3mm rounded
Thickness: side board at 8 mm, top/bottom board at 3 mm, front/rear board at 8 mm but with excavated inner center area in 3mm thinkness for easy of hole drilling

All flat without Pre- cutout/hole(aflat):
Finish: hair brushed in anodized plating, in black and natural finish
net weight: 2.75 kgs

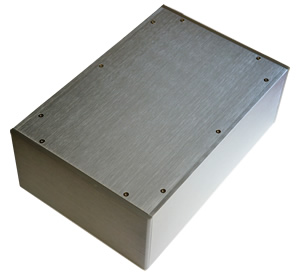

PRAL-203010r Oblong All Alum. Chassis
Overall size: 20cm(W) x 30cm(D) x 10 cm(H)
Face / rear Panel: 20cm (W)x 10 cm(H), both left/right edges in 3mm rounded
Thickness: side board at 6 mm, top/bottom board at 3 mm, front/rear board at 6 mm but with excavated inner center area in 3mm thinkness for easy of hole drilling

All flat without Pre- cutout/hole(aflat):
Finish: hair brushed in anodized plating, in black and natural finish
net weight: 2.27 kgs

All flat without Pre- cutout/hole(aflat):

Finish: hair brushed in anodized plating, in black and natural finish
net weight: 2.42 kgs

Pre- cutout/hole:
- logo plate recesses of 21mm x 42mm
- Led hole: 3mm dia

Back Panel Pre-cutout/hole;
- INPUT: 6 hole or 3 sets for inputs(11.8mm dia) with printing of "MM", "MC1" & "MC2"
- OUTPUT: 2 hole for Output(11.8mm dia), with printing of "OUTPUT'
- Earthing terminal hole: 6.2mm dia.
- Power socket:of 28 x 20 mm cut out , with 2 fixing screw hole
- Power Switch cutout:of 14 x 20.5 mm, for snap-in type
- fuse hole in 16mm dia.

Finish: hair brushed in anodized plating, in black and natural finish
net weight: 4.1 kgs

Shipped with following parts;
- 4 pairs of TCST Taiwanese made gold plated RCA socket
- 1 pc of Taiwanese made gold plated earthing terminal post
- 1 pc of ST/SM Swiss Schurter male Power socket
- 1pc of SFEC Swiss Schurter fuse socket
- 1pc of SCH1552-16A Schurter rock switch

All flat without Pre- cutout/hole(aflat):

Finish: hair brushed in anodized plating, in black and natural finish
net weight: 2.57 kgs

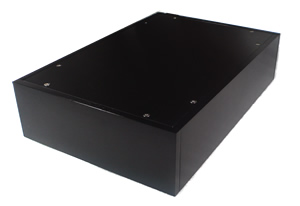

PRAL-22307 All Alum. Chassis.
-- Ditto -- But,
Overall size: 22cm(W) x 30cm(D) x 7 cm(H)
Face Panel: 22cm (W)x 7 cm(H)
net weight: 2.57 kgs

Pre- cutout/hole:
- Front Input Select and volume control, recesses of 30.5mm Dia. x 5.5mm(Depth)
- Led hole: 3mm dia

Back Panel Pre-cutout/hole;
- INPUT: 4 hole or 2 sets for inputs(11.8mm dia)
- OUTPUT: 2 hole for Pre. out(11.8mm dia)
- Power socket:of 28 x 20 mm cut out , with 2 fixxing screw hole
- Power Switch cutout:of 14 x 20.5 mm cut out, for snap-in type
- fuse hole in 12mm dia.

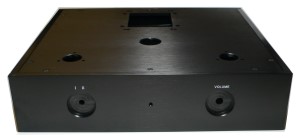

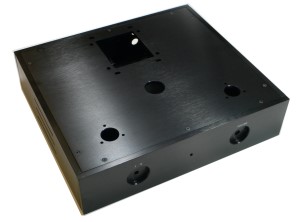

Top cover cutout/hole;
- for driver stage in 2 hole of 22mm dia. and each 3 fixing screw hold(3mm)
- 1 hole for rectifier tube in 27mm
- Square transformer hole(63 x 74mm D) with 4 each fixing screw rounded oblong hole(5 x 8mm) and round hole(6mm)

Finish: hair brushed in anodized plating in black and natural finish
net weight: 3 kgs

PRAL-30267F All Alum. Chassis for Pre. amp.
--- ditto -- but without pre-cutout on top cover board and no tuning knob with shipping

Shipped with following parts, but not mounted as shown;
- 3 pairs of TCST Taiwanese made gold plated RCA socket
- 1 pc of ST/SM Swiss Schurter male Power socket
- 1pc of SFEC Swiss Schurter fuse socket
- 1pc of SCH1552-16A Schurter rock switch

PRAL-30267s All Alum. Chassis for Pre. amp.
--- Same as PRAL-30267 but depth at 26 cm ---
Overall size: 30cm(W) x 26cm(D) x 7 cm(H)

PRAL-30267sF All Alum. Chassis for Pre. amp.
--- Same as PRAL-30267 but without pre-cutout on top cover board and no tuning knob with shipping. Also depth at 26 cm---
Overall size: 30cm(W) x 26cm(D) x 7 cm(H)

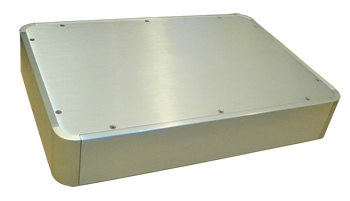

PRAL-47328R All Alum. Chassis for Pre. amp.
Overall size: 46.8cm(W) x 32cm(D) x 8 cm(H)
Face Panel: 41cm (W)x 8 cm(H)
Side Panel: 26cm (D) x 8 cm(H)
Thickness: side board/front board at 12mm, top/bottom board at 5mm/3mm

Pre- cutout/hole:
- Back panel in inner recess for easy of hole drilling(3mm).

Finish: hair brushed in anodized plating in natural and black finish
net weight: 5.5kgs

PRAL-473210R All Alum. Chassis for Pre. amp.
-- Ditto --
but height at 10.2cm(H),
net weight: about 6.0kgs

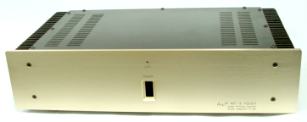

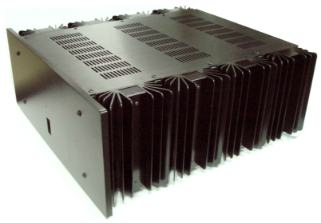

PWAD-01 Case for transistor power Amplifier
Application: best suited for 50W or 60W Stereo Class A power Amp, with LED indicator
Face panel: 42 cm x 14cm
body Dimension: 40.2cm(W) x 26cm(D) x 13.4cm(H)
Size on heat sink: 25cm(D) x 13.5cm(H) x 4cm(Thick)

Thickness: steel chassis (1.2mm), Panel option for 10mm & 8 mm
Finish: Alum. alloy panel in anodized plating + Steel body in painting
Color finish: Silver white in hair brush finish

Pre-print in top cover:
MOSPOWER
class "A"MOSFET Discrete Poweramplifier

Pre-print in face panel:
- Logo with print of 'Registered by Soundoyez Class "A" FET Preamplifier
- Model:
- BORBELY AUDIO
Melchior Fanger Strasse 34A
82205 New-Gilching., Germany
- Warning DO NOT OPEN!!, To avoid of electric shock!

Pre- holed and silk screen print in face panel:
- 2 x RCA Input, 9.4mm dia., print with 'RIGHT'/"LEFT"
- 4 x RCA output, 9.4mm dia.
- 1 x fuse holder, 12.5mm dia, print with "Fuse 10A Slow Blow"
- 2 x fuse holder, 12.5mm dia, print with "Fuse 5A"
- 2 x fuse holder, 12.5mm dia., print with "Fuse 0.5A"
- 1 x power switch hole, 28 mm x 20mm, print with"115VAC 230VAC"

Pre-cutout/hole:
Panel Main switch; 36 x 28mm( recess 33 x 31 mm)
Led hole: 3mm dia

Back Panel; 2 hole for inputs(10mm dia)
Holes between(hole center to hole center) at 14.2cm

2 set of speaker out(each with 4 hole of 10mm dia.)
+/- Binding post holes between at 4cm, up and down at 3.5cm

Power Switch: 28 x 20 mm cut out
fuse hole in 12mm dia.

Finish: Black and champagne anode plating over alum. alloy.

PS: shipping with tan transistor NYLON protected cup, not as shown in photo for baked steel shield

*Limited quantity offer

Pre-cutout/hole:
Panel Main switch; 23 x 13mm( recess 38 x 23 mm)
Led hole: 3mm dia
Back Panel; 2 hole for inputs(10mm dia)
2 set of speaker out(each with 4 hole of 10mm dia.)
Power Switch: 28 x 20 mm cut out
fuse hole in 12.5mm dia.

Finish: alum. alloy anode plating in champagne. top, bottom & rear panel in baked steel with printed indication labeling.

*Limited quantity offer

PWRAM-2  Alum./Steel Chassis case for power amp.
Overall size: 25cm(W) x 37cm(D) x 24cm(H)
Steel body size; 24.1 cm (W) x 36.7cm(D) x 13.5cm(H)
Alum. Panel size: 25cm (W)x 24cm(h)
Thickness: body(1.2mm), panel (6mm)

Pre-cutout/hole:
Panel Main switch; 15mm dia.( recess 17.5 mm)
Led hole: 3mm dia

Back Panel;
Rin/Lin input: 2 input holes(10mm dia)
Out +/- Speaker Output: 2 set of speaker out(each with 2 of 10mm dia. hole)
Power Switch: 28 x 20 mm cut out

Finish: alum. alloy anode plating in face panel, body in baked steel with printed indication labeling.

Net Weight: 4.7kgs

PWRML-3 Power-main steel chassis case
Black painting in dull finish
Panel size: 25cm x 13cm(5mm thickness)
Chassis dimension: 24.3cm(W) x 38.5cm(D) x 13(H)
* discontinued

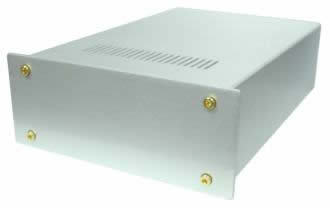

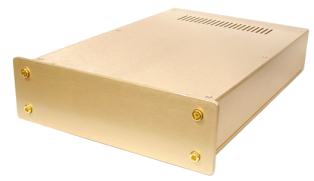

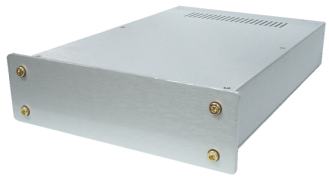

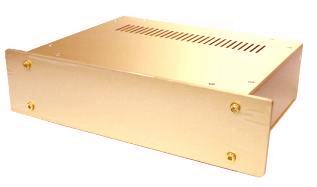

PRAL-1 Pre-Amp Alum chassis case(1 unit size)
Panel size: 48cm x 7 cm(5mm thickness)
Chassis dimension: 43cm(W) x 30cm(D) x 6.5cm(H)
Weight: 2 kgs
finished: Natural, champagne,Black body/champagne Face panel

PRAL-1-BS Pre-Amp Alum chassis case(1 unit size)
--ditto -- but black body with silver finish panel

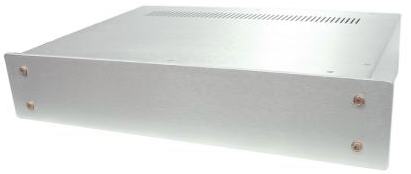

PRAL-2 Pre-Amp Alum chassis case(2 units size)
Panel size: 48cm x 9 cm(5mm thickness)
Chassis dimension: 43cm(W) x 30cm(D) x 9cm(H)
Weight: 3 kgs
finished: Natural, champagne

PRAL-2-BS Pre-Amp Alum chassis case(2 unit size)
--ditto -- but black body with silver finish panel

PRAL-2-BG Pre-Amp Alum chassis case(2 unit size)
--ditto -- but black body with champagne finish panel

PRAL-3 Power-Amp Alum chassis case(3 unit size)
Panel size: 48.3cm x 12.5 cm(5mm thickness)
Chassis dimension: 43cm(W) x 30cm(D) x 12.5 cm(H)
Weight: 4 kgs
finished: Natural, champagne

PRAL-3-BS Power-Amp Alum chassis case(3 unit size)
--ditto -- but black body with silver finish panel

PRAL-1b Alum chassis case(1 unit size)
Panel size: 30.3cm x 6.4cm(5mm thickness)
Chassis dimension: 26.6cm(W)x 38cm(D) x 6cm(H)
Weight: 1.83 kgs
finished: Natural

PRAL-1c Alum chassis case(1 unit size)
Panel size: 25.5cm x 7.7cm(5mm thickness)
Chassis dimension: 23cm(W)x 36cm(D) x 6.5cm(H)
Weight: 1.65 kgs
finished: Natural, Black,champagne, Black body/champagne Face panel

PRAL-1hc Alum chassis case (1 unit size,higher panel)
Panel size: 25.5cm x 10.1cm(5mm thickness)
Chassis dimension: 23cm(W)x 35.7cm(D) x 9.5cm(H)
* cover with open hole at front
Weight: 1.8 kgs
finished: Natural, champagne

PRAL-1sc Alum chassis case(1 unit size, shorter depth)
Panel size: 30.5cm x 7.6cm(5mm thickness)
Chassis dimension: 25.5cm(W)x 20.3cm(D) x 7cm(H)
Weight: 1.25 kgs
finished: Natural, champagne

PRAL-1g Alum chassis case,  champagne finished(1 unit size)
Panel size: 30.3cm x 7.4cm(5mm thickness)
Chassis dimension: 25.3cm(W)x 40.5cm(D) x 7cm(H)
Weight: 2 kgs
finished: Natural, champagne

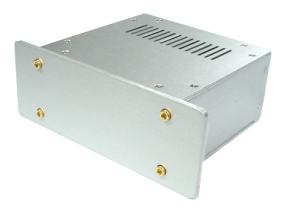

PRAL-1mg Mini alum chassis case,  (1 unit size)
Panel size: 20.4cm x 7.7cm(5mm thickness)
Chassis dimension: 15cm(W)x 15cm(D) x 7cm(H)
Weight: 0.76 kgs
finished: Natural, champagne

Chassis dimension: 14.8cm(W) x 21.5cm(D) x 6cm(H)
