Selected High Quality Connectors; Terminals boards, strips...etc

TB210-B-BN Wiring terminal board
2 rows10 posts, fit soldering wire up to 1.5mm dia., gold plated post, epoxy fibre-glass base, 11 x 6 cm x 3mm, Mfg. of Taiwan

TB210-RB-BN Wiring terminal board
2 rows each10 posts, copper post 4mm dia. x 23mm H, gold plated,epoxy fibre-glass base,11 x 6 cmx 3mm, Taiwan

TB106-B-BN Terminal strip
6 posts, fix with wiring dia. up to 1.5mm, gold plated,epoxy fibre-glass base, 7 x 0.9 cm
TB110-B-BN Terminal strip
10 posts, fix with wiring dia. up to1.5mm, gold plated post, epoxy fibre-glass base, 12 x 1 cm, Taiwan mfg.

TB104-B-BN Terminal strip
4 posts
, fix with wiring dia. up to1.5mm, gold plated post, epoxy fibre-glass base, 4.9 x 1 cm, Taiwan mfg..


TB105H-B-BN Terminal strip
5 posts, fix with wiring dia. up to1.5mm, gold plated,epoxy fibre-glass base, 4.9 x 17.7 cm,

TB1-B-T Teflon Terminal Post
Brass/Teflon post, fix with wiring dia. gold plated, up to1.5mm, 7.5mm dia. x 33mm(overall H), fixing screw to use 3mm dia. (max. through length of 10mm), 10pcs pack, Taiwan mfg..

TB120-Z-BB SATO terminal strip
20 posts, fix with wiring dia. up to 1.5mm, zinc plated post, bakelite, Post to post 6.5mm, post height 6.5mm, 14 x 0.7 cm, Japan

TB115-Z-BB SATO Terminal strip
--ditto-- but 15 posts, 12 x 0.7 cm

TB110-Z-BB SATO Terminal strip
--ditto-- but 10 posts, post to post 8.5mm, 10 x 0.7 cm

TB105-Z-BB SATO Terminal strip

--ditto-- but 5 posts, post to post 8.5mm, 5.6 x 0.7 cm

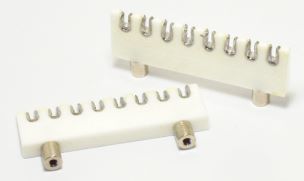

TB110-S-CW10 Ceramic terminal supporter
10 posts, fix with wiring dia. up to 1.7mm, silver plated post, ceramic, 7.4 x 1.9 cm, fixing screw 2.5mm, Japan

TB110-S-CW6 Ceramic terminal supporter
--ditto-- but 6 posts with size at 4.5 x 1.8cm

TB110-S-CW4 Ceramic terminal supporter
--ditto-- but 4 posts,
size at 3.1 x 1.8cm

TB108-S-CW10 Ceramic terminal supporter
10 posts, fix with wiring dia. up to 1.5mm, silver plated post, ceramic, 7.4 x 1.8 cm, fixing nut, Japan

TB108-S-CW8 Ceramic terminal supporter
--ditto-- but 8 posts with size at 5.9 x 1.8cm

TB108-S-CW6 Ceramic terminal supporter
--ditto-- but 6 posts, size at 4.5 x 1.8cm


TB108-S-CW4 Ceramic terminal supporter
--ditto-- but 4 posts,
size at 3.1 x 1.8cm

TB2218-Z-BCS Terminal board
2 rows each18 posts, fix with wiring wire dia. up to 1.6mm, znic plated tag, SRBP board, 11.8 x 3.8 cm, UK mfg.
TB105-B-T Teflon terminal strip
5 posts, gold plated post on teflon base strip,6.8 x 0.6 cm, Japan

TB110-B-T Teflon terminal strip
--ditto-- but 10 posts, size in 11.8 x 0.6cm

TB105-B-WD Hardwood terminal strip
5 post, gold plated post on wood base strip, 6.8 x 0.6 cm, Japan

TB110-B-WD Hardwood terminal strip

10 post, gold plated post on wood strip, 11.8 x 0.6 cm, Japan

TB22-N-BB SATO screw barrier strip
2-way two sides, nickel plated brass screw,

2.4 x 6.2 cm, width between terminal partitions at 7mm, Japan mfg.

TB24-N-BB SATO screw barrier strip
--ditto-- but 4 way, size 2.4 x 6.2 cm


TB26-N-BB SATO Screw barrier strip

--ditto-- but 6 way, size 2.4 x 8.5 cm

TB22-N-BB-L SATO Screw barrier strip
2-way two sides, nickel plated brass screw,
3.4 x 5.2 cm, width between terminal partitions at 12mm, Japan mfg.

TB24-N-BB-L SATO Screw barrier strip
--ditto-- but 4-way,size in3.4 x 8.1 cm

TB26-N-BB-L SATO Screw barrier strip
--ditto but 6-way, size in
3.4 x 10.9cm

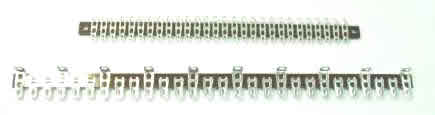

TB228-Z-BC RS Tag stripes

28 tags, fit with up to 1.2mm wire termination, zinc plated, L 19 cm

TB128-Z-BC RS Tag Strips
28 tag(with 18 insulated and 10 earthed points, fit with up to 1.2mm wire termination, zinc plated,
L 27 cm


TB12Y-Z-BC RS Fanning Strips
fit with 12 x  4mm Y spade/3mm crimp wire, tin plated, 13 cm length

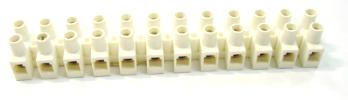

TB212-Z-NLS  RS screw terminal block
12- way, nickel-plated brass inserts, zinc plated screw, length 10 x 1.5 cm

TB212-Z-NL  RS Screw terminal block

--ditto-- but 14 x 2.3 cm overall size
For others not listed here, please refer to Miscellaneous or contact
