SBACOUSTICS > WOOFERS > 8" SB23NACS45-8

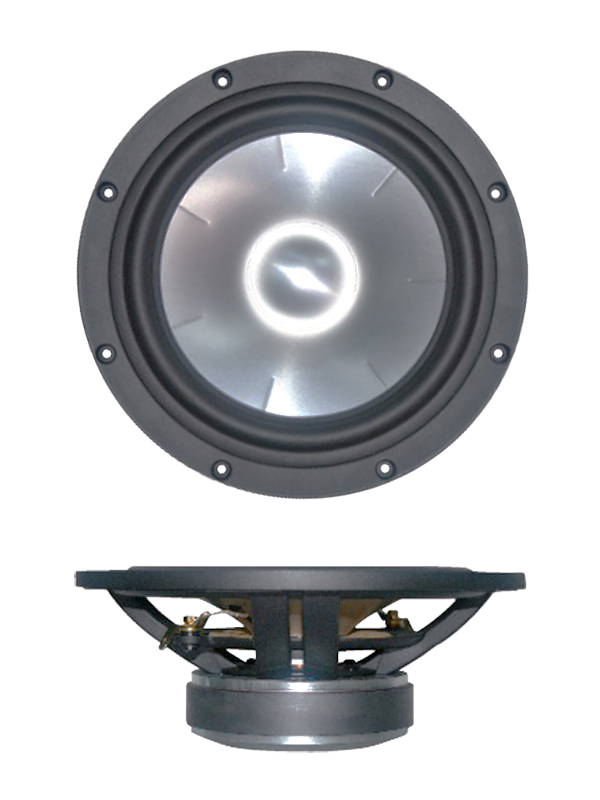

8" SB23NACS45-8
SPECIAL FEATURES
- Soft low damping rubber surround for improved transient response
- Geometrically reinforced aluminum cone for improved break-up control
- Shorting ring in motor system for reduced distortion
- Vented pole piece for reduced compression
- Vented cast aluminum chassis for optimum strength and low compression
- Shallow design
- Non-conducting fibre glass voice coil former for minimum damping
- CCAW voice coil for reduced moving mass
- Long life silver lead wires
Click to download PDF
