SBACOUSTICS > TWEETERS > SB26STAC-C000-4

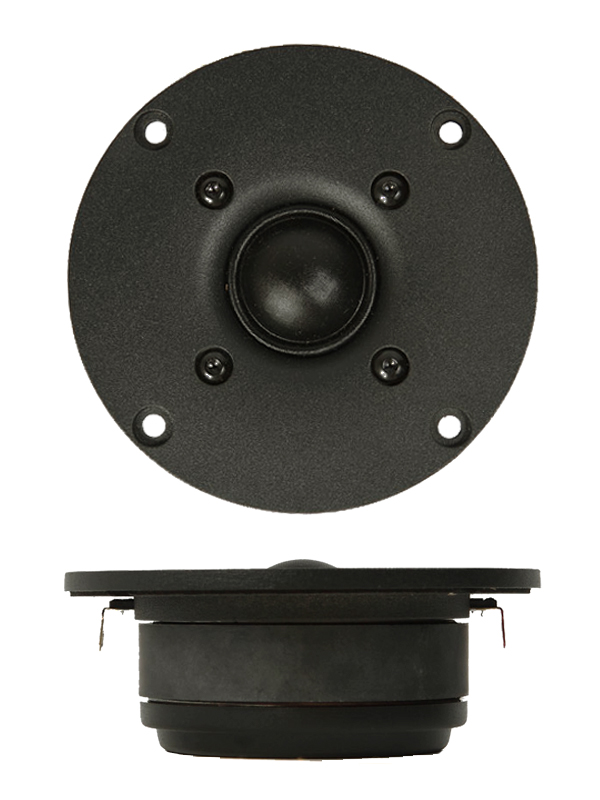

SB26STAC-C000-4
SPECIAL FEATURES
- Cast aluminium faceplate
- Copper cap for reduced voice coil inductance and minimum phase shift
- Non-reflective rear chamber with optimized damping for improved dynamics
- Flow optimized vented pole piece for optimum coupling to rear chamber
- Fine weave soft fabric dome for smooth frequency response
- Saturation controlled motor system for low distortion
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency
Click to download PDF
